Manufacturer: FESTO

Type: Linear Actuator

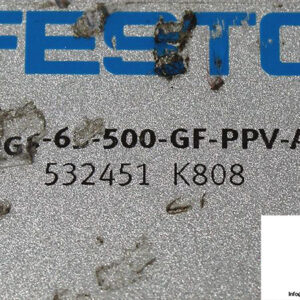

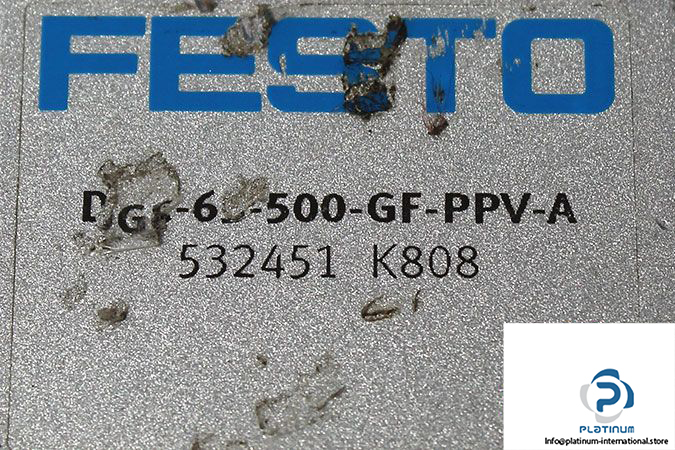

Model: DGC-63-500-GF-PPV-A

Part No: 532451

Materials

• Cover: Wrought Aluminum Alloy
• Seals: NBR TPE-U(PU)

Piston Diameter: 63 mm

Cushioning: Adjustable at Both Ends

Stroke: 500 mm

Cushioning Length: 31.1 mm

Operating Pressure: 1.5…8 bar

Theoretical Force At 6 Bar, Retracting: 1870 N

Theoretical Force At 6 Bar, Advancing: 1870 N

Ambient Temperature: -10…60 °C

Pneumatic Connection: G3/8

Constructional Design: Pneumatic Linear Drive with Slide

Mode of Operation: Double-Acting

Guide: Recirculating Ball Bearing Guide

Position Sensing: For Proximity Sensor

Magnet: with Magnet

Type of Mounting: with Accessories

Weight: 23.340 kg
