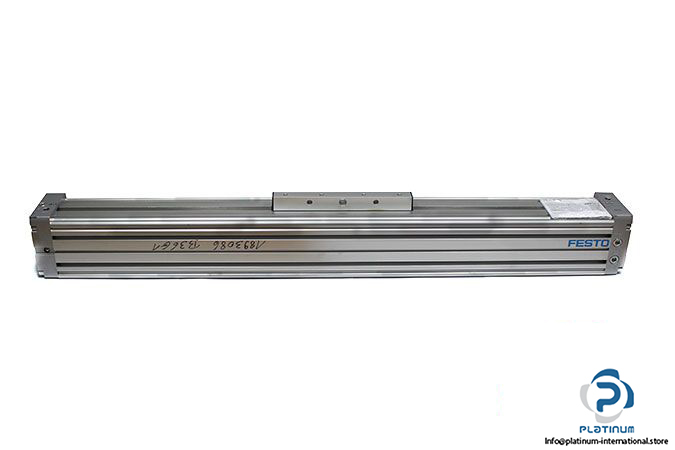

Manufacturer: Festo

Type: Linear Actuator

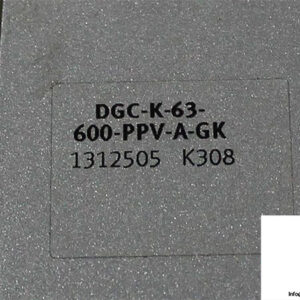

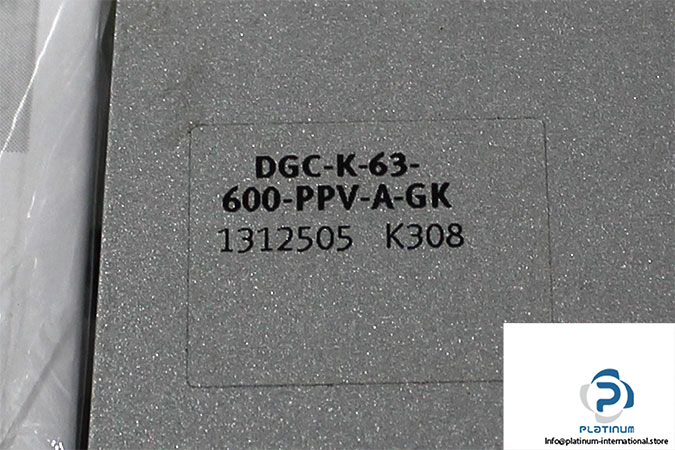

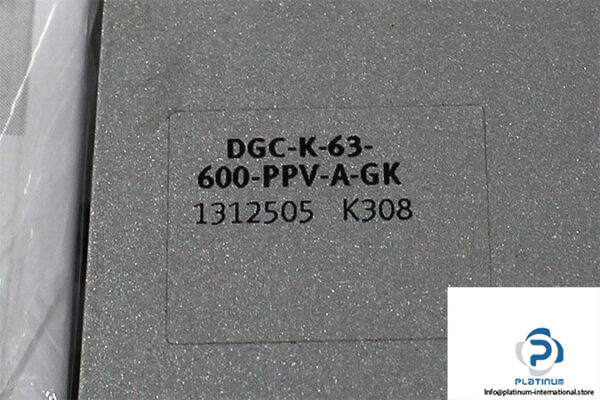

Model: DGC-K-63-600-PPV-A-GK

Part No: 1312505

Materials

• Cover: Die-Cast Aluminum
• Seals: NBR TPE-U(PU)

Piston Diameter: 63 mm

Cushioning: Pneumatic Cushioning, Adjustable at Both Ends

Stroke: 600 mm

Cushioning Length: 30 mm

Operating Pressure: 1.5…8 bar

Theoretical Force At 6 Bar, Retracting: 1870 N

Theoretical Force At 6 Bar, Advancing: 1870 N

Ambient Temperature: -10…60 °C

Pneumatic Connection: G3/8

Mode of Operation: Double-Acting

Position Sensing: For Proximity Sensor

Magnet: with Magnet

Type of Mounting: with Accessories

Weight: 17 kg
