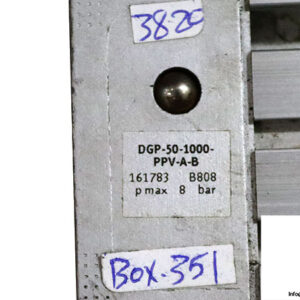

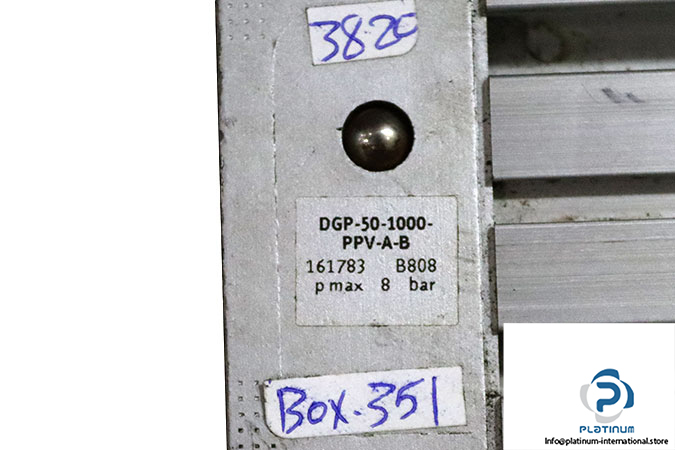

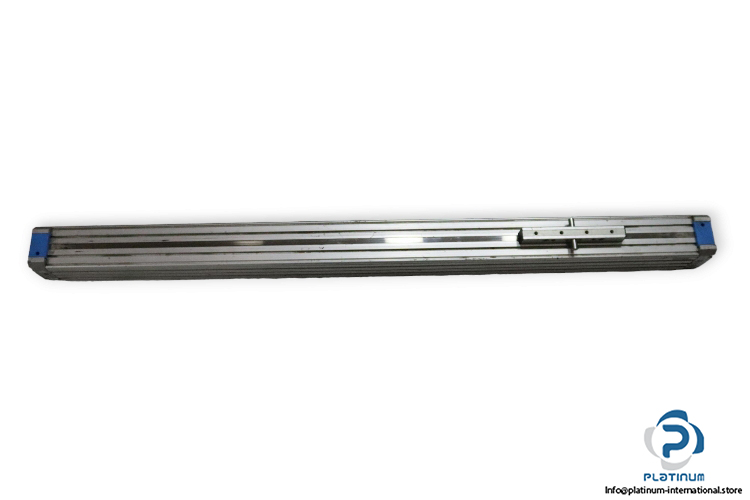

FESTO DGP-50-1000-PPV-A-B Linear Drive
The FESTO DGP-50-1000-PPV-A-B is a precision linear drive designed for high-performance pneumatic automation systems. With a long stroke, robust aluminum construction, and smooth double-acting operation, it ensures accurate and efficient linear motion in industrial applications.
Manufacturer: FESTO
Type: Linear Drive
Model: DGP-50-1000-PPV-A-B
Part No.: 161783
Technical information
- Media: Compressed air
- Stroke: 1000 mm
- Piston Diameter: 50 mm
- Working Pressure: 1.5 / 8 bar
- Cushioning Length: 30 mm
- Mode of Operation: Double-acting
- Pneumatic Connection: G ¼
- Piston Sensing: For proximity sensor
- Ambient Temperature: -10 / 60 °C
- Materials: Aluminum anodized
