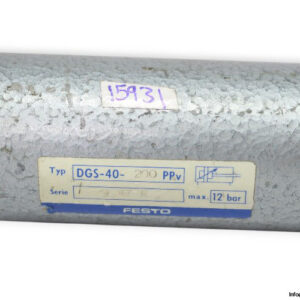

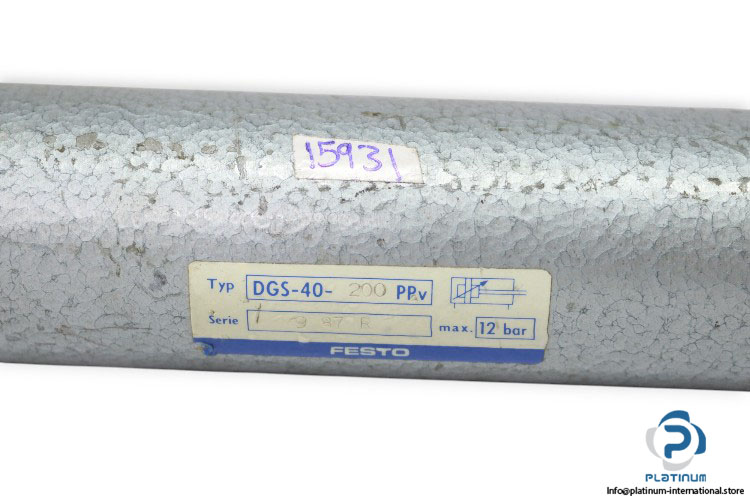

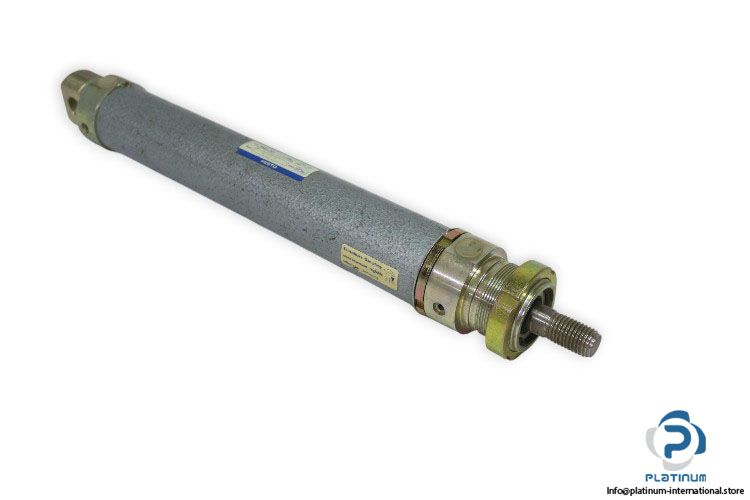

Festo DGS-40-200-PPV Round Cylinder
The Festo DGS-40-200-PPV is a high-performance pneumatic round cylinder from the DGS series, designed for precise linear motion in demanding industrial environments. Featuring robust construction, adjustable pneumatic cushioning, and a long stroke length, it ensures reliable operation with compressed air systems.
Manufacturer: Festo
Type: Round Cylinder
Model: DGS-40-200-PPV
Series: DGS
Technical Information
- Stroke Length: 200 mm
- Piston Diameter: 40 mm
- Piston Rod Thread: 12 mm, Male
- Pneumatic Connection: G1/4
- Operating Medium: Compressed Air
- Variants: Single-ended piston rod
- Cushioning: PPV, Pneumatic cushioning adjustable at both ends
- Mode of Operation: Double-acting
- Max. Operating Pressure: 12 bar
- Shape: Circular
- Rod Direction: One Side
- Ambient Temperature: -20 to 80 °C
