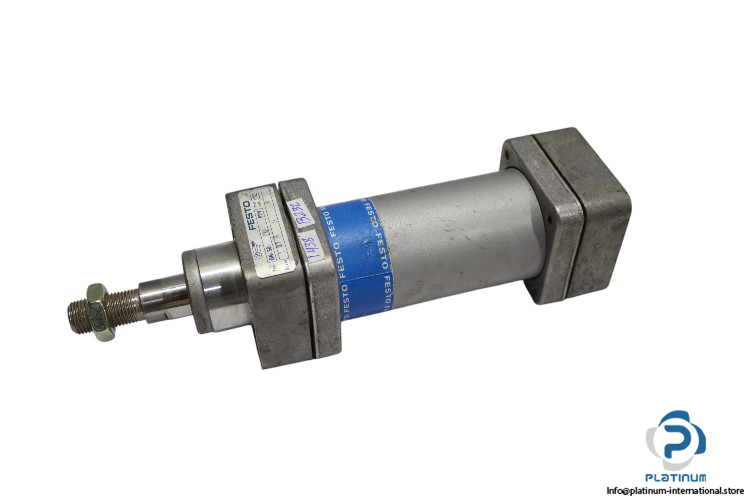

Festo DN-50-70-PPV ISO Cylinder
The Festo DN5070PPV ISO Cylinder is a high-quality pneumatic actuator designed for reliable linear motion using compressed air. With a 50 mm bore and 70 mm stroke, it features a durable circular shape, male piston rod end, and one-sided rod direction for precision in industrial applications.
Manufacturer: FESTO
Type: ISO Cylinder
Model: DN-50-70-PPV
Technical Information:
- Media: Compressed Air
- Bore Diameter: 50 mm
- Stroke: 70 mm
- Bore x Stroke: 50 x 70 mm
- Rod Diameter: 18 mm
- Frame Dimensions: 70 x 265 mm
- Pneumatic Connection: G 1/4
- Pressure Max.: 12 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Circular
- Rod Direction: One Side
