FESTO DN-50-800-PPV ISO CYLINDER

festo-DN-50-800-PPV-iso-cylinder-(Used)
festo-DN-50-800-PPV-iso-cylinder-(Used)-1
festo-DN-50-800-PPV-iso-cylinder-(Used)
festo-DN-50-800-PPV-iso-cylinder-(Used)-1

FESTO DN-50-800-PPV ISO CYLINDER

ISO Cylinder

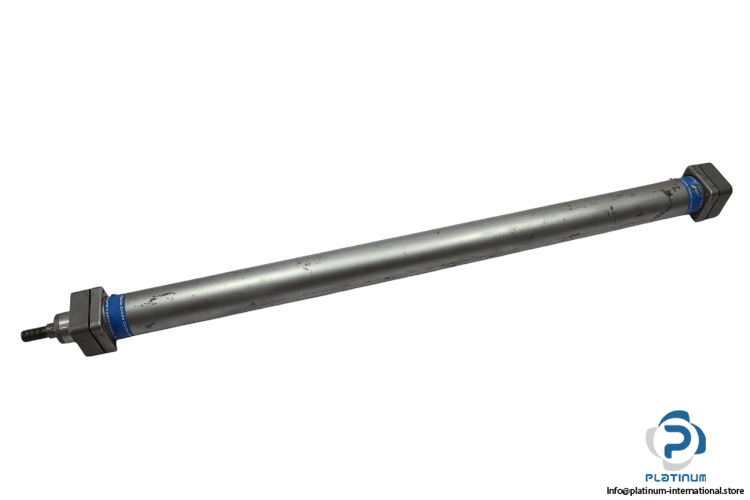

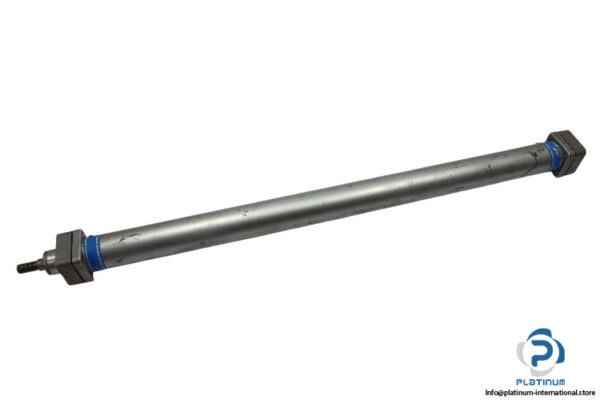

The Festo DN-50-800-PPV ISO Cylinder features a 50 mm bore, 800 mm stroke, and 12 bar pressure capacity. Built for double-acting pneumatic applications with a circular body and G 1/4 connection.

SKU: 1062703 Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , ,
In stock: 1 pcs
Very low
Hurry! Only 1 left in stock.
Add to quote

Festo DN-50-800-PPV ISO Cylinder

The Festo DN50800PPV ISO Cylinder is a high-quality pneumatic actuator designed for reliable performance in industrial automation. With a robust circular shape and long stroke, it supports double-acting operation and offers excellent force transmission.

Manufacturer: FESTO

Type: ISO Cylinder

Model: DN-50-800-PPV

Technical Information:

  • Media: Compressed Air
  • Bore Diameter: 50 mm
  • Stroke: 800 mm
  • Bore x Stroke: 50 x 800 mm
  • Rod Diameter: 20 mm
  • Frame Dimensions: 65 x 935 mm
  • Pneumatic Connection: G 1/4
  • Pressure Max.: 12 bar
  • Operation Mode: Double
  • Piston Rod End: Male
  • Shape: Circular
  • Rod Direction: One Side
Weight5,9 kg
Condition

Manufacturer

Type of Product

Shelf No.

Model
