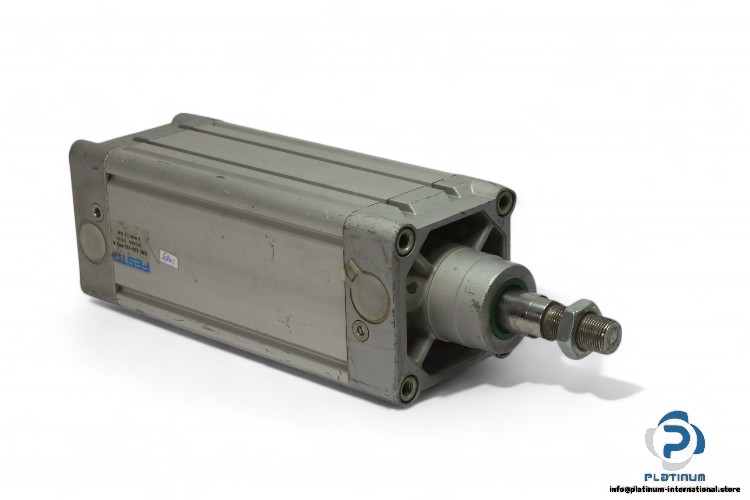

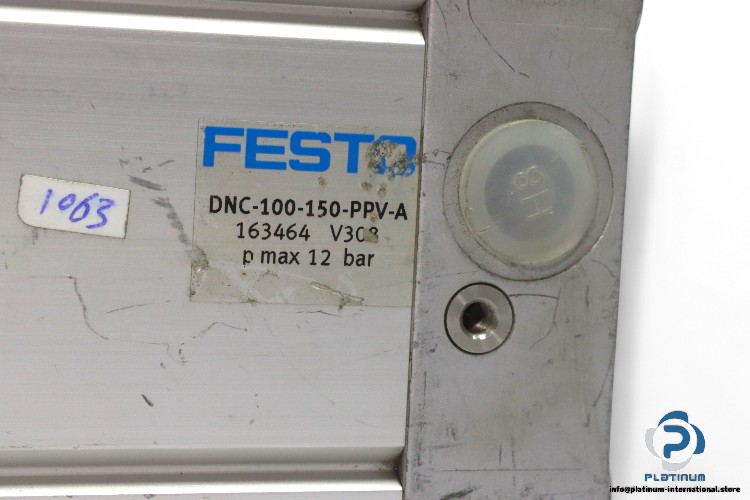

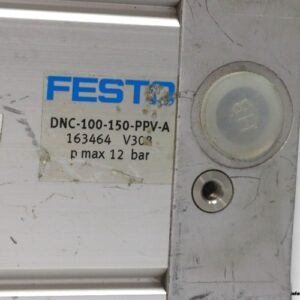

FESTO DNC-100-150-PPV-A ISO CYLINDER

festo-DNC-100-150-PPV-A-iso-cylinder-(Used)
festo-DNC-100-150-PPV-A-iso-cylinder-(Used)-1
festo-DNC-100-150-PPV-A-iso-cylinder-(Used)
festo-DNC-100-150-PPV-A-iso-cylinder-(Used)-1
Used
Manufacturer: Festo

FESTO DNC-100-150-PPV-A ISO CYLINDER

ISO Cylinder

FESTO ISO Cylinder DNC-100-150-PPV-A
offers reliable performance in compressed air systems. With a 100 mm bore diameter, 150 mm stroke, and a maximum pressure of 12 bar, it is designed for industrial automation applications. Pneumatic connection: G 1/2, male piston rod end.

SKU: 1061620 Category: Tags: , , , , , , , , , , , , , , , , , , , , , ,
In stock: 1 pcs
Very low
Hurry! Only 1 left in stock.
Add to quote

FESTO ISO Cylinder DNC-100-150-PPV-A

The FESTO ISO Cylinder DNC-100-150-PPV-A is designed for high-performance applications using compressed air. With a robust design and various features, this cylinder is ideal for industrial automation and pneumatic systems requiring reliable and efficient operation.

Manufacturer: FESTO

Type: ISO Cylinder

Model: DNC100150PPVA

Part No.: 163464

Technical Specifications

  • Media: Compressed Air
  • Bore Diameter: 100 mm
  • Stroke: 150 mm
  • Bore x Stroke: 100 x 150 mm
  • Rod Diameter: 25 mm
  • Frame Dimensions: 110 x 330 mm
  • Pneumatic Connection: G 1/2
  • Pressure Max.: 12 bar
  • Operation Mode: Double
  • Piston Rod End: Male
  • Shape: Square
  • Rod Direction: One Side
Weight5,69 kg
