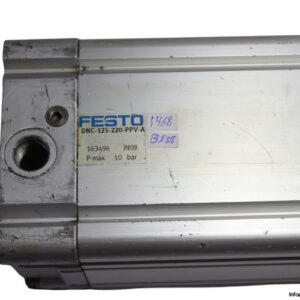

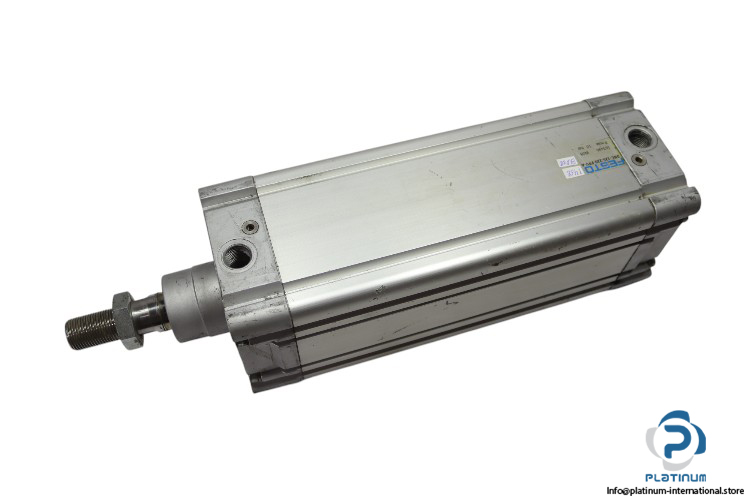

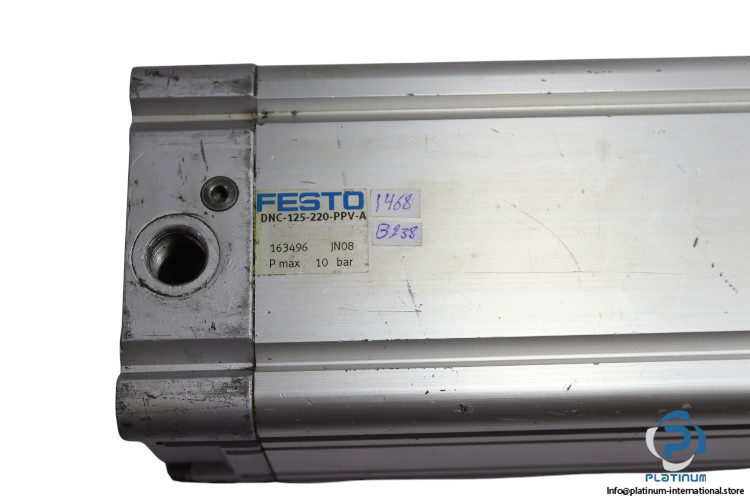

Festo DNC-125-220-PPV-A ISO Cylinder

The Festo DNC125220PPVA ISO Cylinder is a robust and precise pneumatic actuator, engineered for demanding industrial applications. With a large 125 mm bore and 220 mm stroke, it delivers powerful and reliable performance using compressed air.

Manufacturer: FESTO

Type: ISO Cylinder

Model: DNC-125-220-PPV-A

Part No.: 163496

Technical Information:

• Media: Compressed Air
• Bore Diameter: 125 mm
• Stroke: 220 mm
• Bore x Stroke: 125 x 220 mm
• Rod Diameter: 33 mm
• Frame Dimensions: 135 x 435 mm
• Pneumatic Connection: G 1/2
• Pressure Max.: 10 bar
• Operation Mode: Double
• Piston Rod End: Male
• Shape: Square
• Rod Direction: One Side
