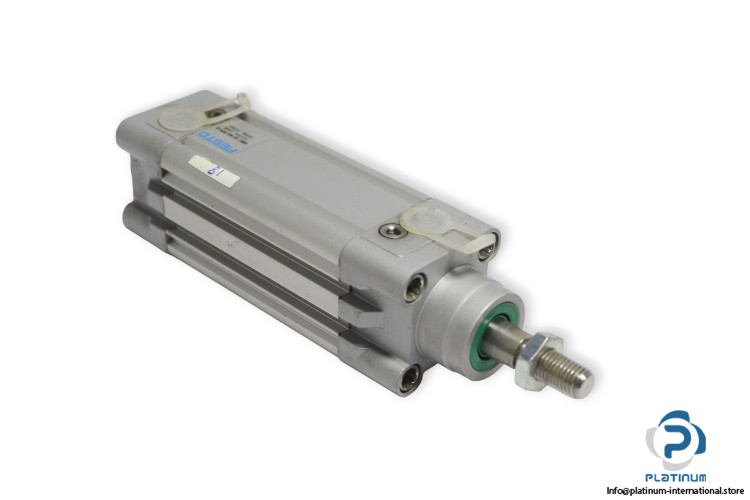

Manufacturer: Festo
Type: ISO Cylinder

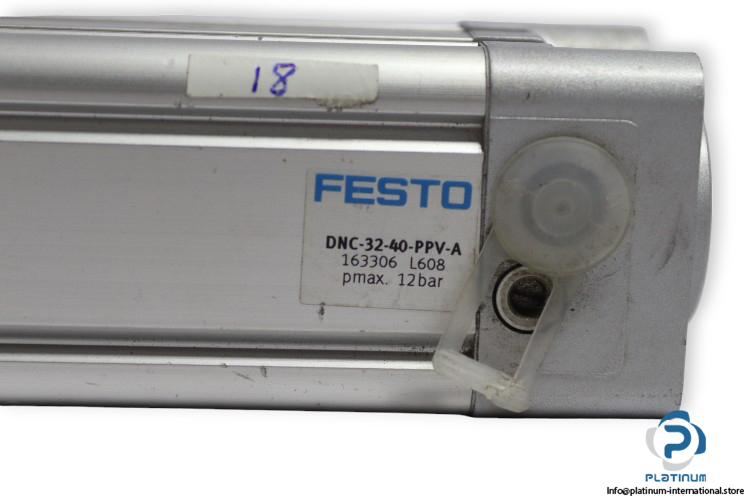

Model: DNC3240PPVA
Part. No: 163306


Media: Compressed Air
Stroke (mm): 40
Bore diameter (mm): 32
BorexStroke (mm): 32×40
Rod diameter (mm): 12
Fram Dimensions(mm): 45×155
Operating pressure (bar): 0.6-12
Pneumatic connection: 1/8
Mode of operation: Double
Piston rod end: Male
Shape: Square
Rod Direction: One Side
