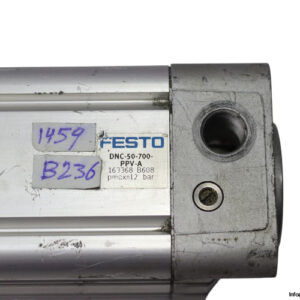

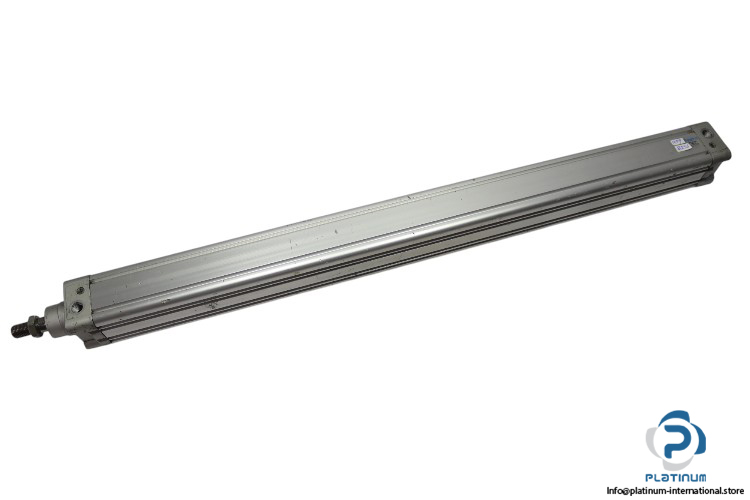

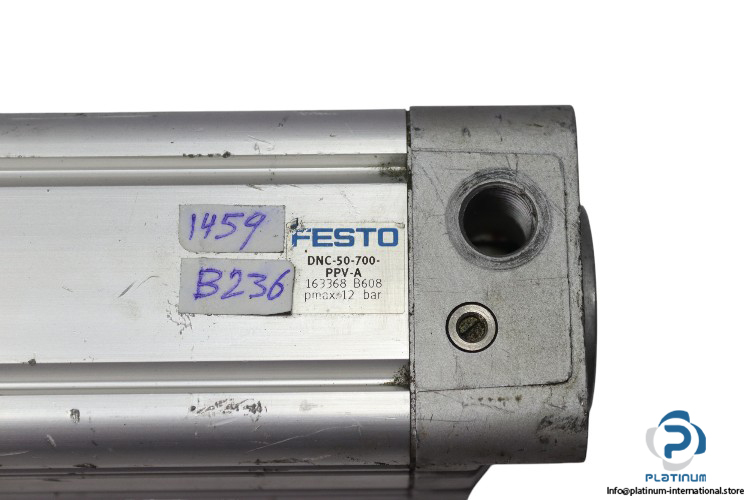

Festo DNC-50-700-PPV-A ISO Cylinder

The Festo DNC50700PPVA ISO Cylinder is a powerful pneumatic actuator designed for industrial applications requiring long strokes and precise motion. With a 50 mm bore, 700 mm stroke, and robust square design, it ensures high performance and reliability.

Manufacturer: FESTO

Type: ISO Cylinder

Model: DNC-50-700-PPV-A

Part No.: 163368

Technical Information:

• Media: Compressed Air
• Bore Diameter: 50 mm
• Stroke: 700 mm
• Bore x Stroke: 50 x 700 mm
• Rod Diameter: 20 mm
• Frame Dimensions: 65 x 840 mm
• Pneumatic Connection: G 1/4
• Pressure Max.: 12 bar
• Operation Mode: Double
• Piston Rod End: Male
• Shape: Square
• Rod Direction: One Side
