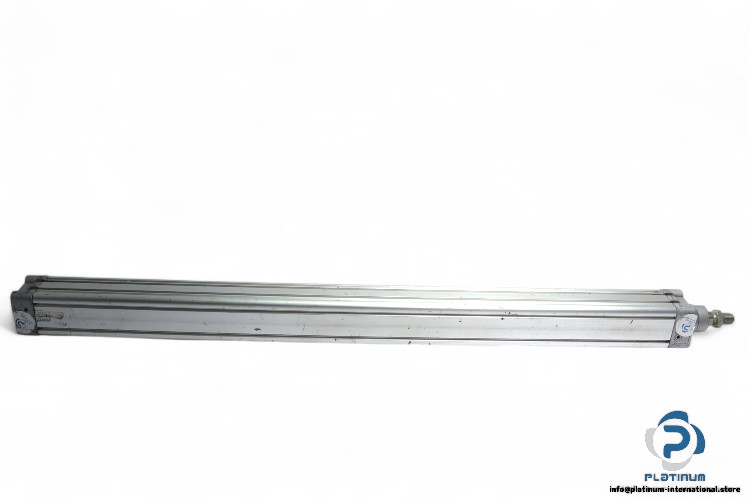

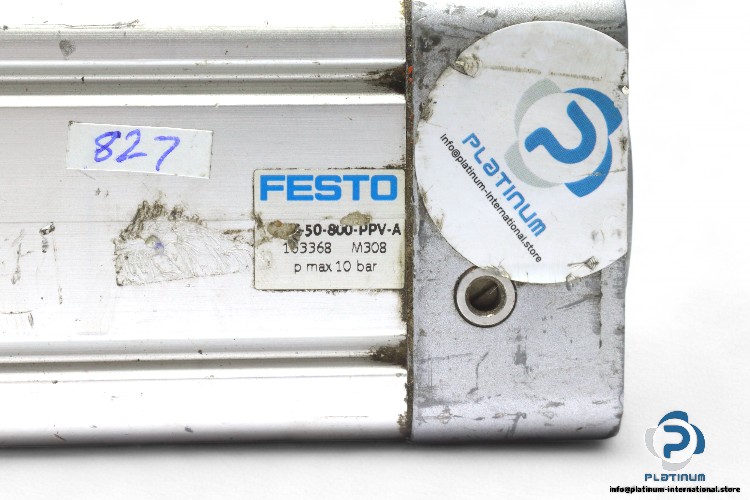

Manufacturer: FESTO
Type: ISO Cylinder
Model: DNC-50-800-PPV-A
Part No.: 163368

Media: Compressed Air
Stroke: 800 mm
Bore diameter: 50 mm
Bore X Stroke: 50×800 mm
Rod diameter: 20 mm
Fram Dimensions: 64X935 mm
Pneumatic connection: G1/4
Max pressure: 10 bar
Mode of operation: Double
Piston rod end: Male
Shape: Square
Rod Direction: One Sid
