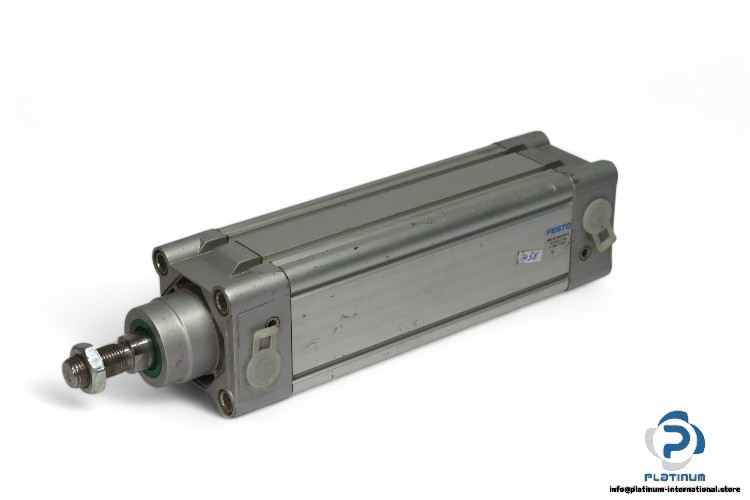

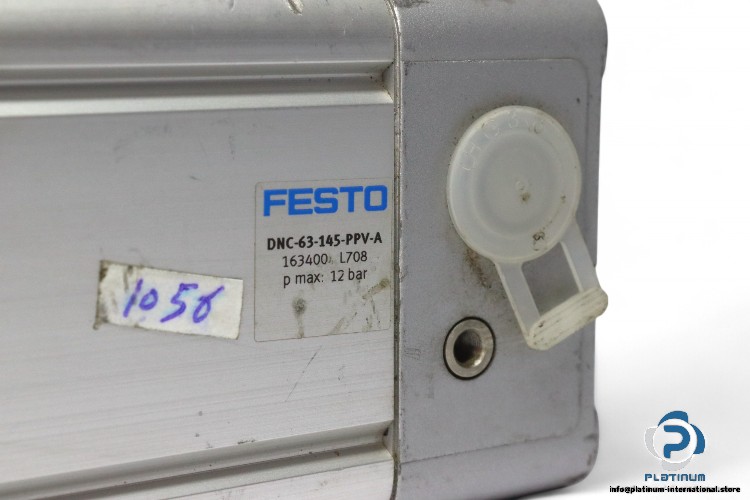

FESTO ISO Cylinder DNC-63-145-PPV-A

The FESTO ISO Cylinder DNC-63-145-PPV-A is designed for high-performance pneumatic applications, offering reliable and efficient motion control. With a 63 mm bore diameter and 145 mm stroke, this cylinder provides smooth operation for various industrial automation systems.

Manufacturer: FESTO

Model: DNC63145PPVA

Part No.: 163400

Technical Specifications

• Media: Compressed Air
• Bore Diameter: 63 mm
• Stroke: 145 mm
• Bore x Stroke: 63 x 145 mm
• Rod Diameter: 20 mm
• Frame Dimensions: 75 x 300 mm
• Pneumatic Connection: G 3/8
• Pressure Max.: 12 bar
• Operation Mode: Double
• Piston Rod End: Male
• Shape: Square
• Rod Direction: One Side
