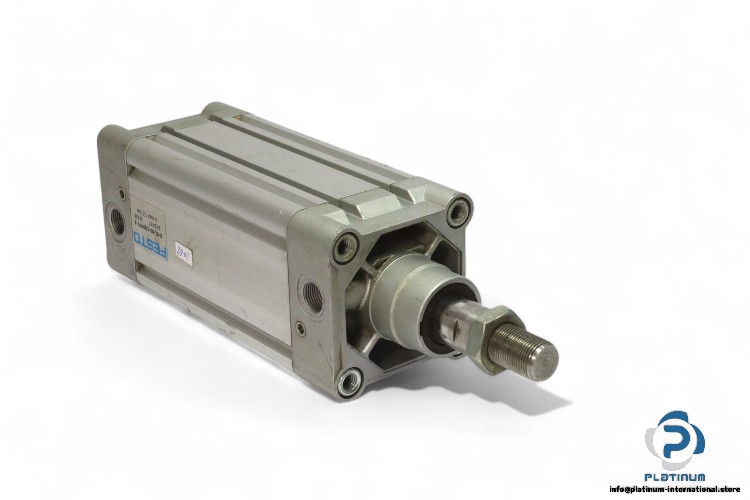

FESTO ISO Cylinder DNC-80-100PPV-A

The FESTO ISO Cylinder DNC-80-100PPV-A is designed for reliable pneumatic operation in industrial systems. With a bore diameter of 80 mm and a stroke of 100 mm, it offers efficient motion control for a variety of applications. This cylinder is ideal for compressed air systems, offering a maximum pressure of 12 bar and a durable male piston rod end.

Manufacturer: FESTO

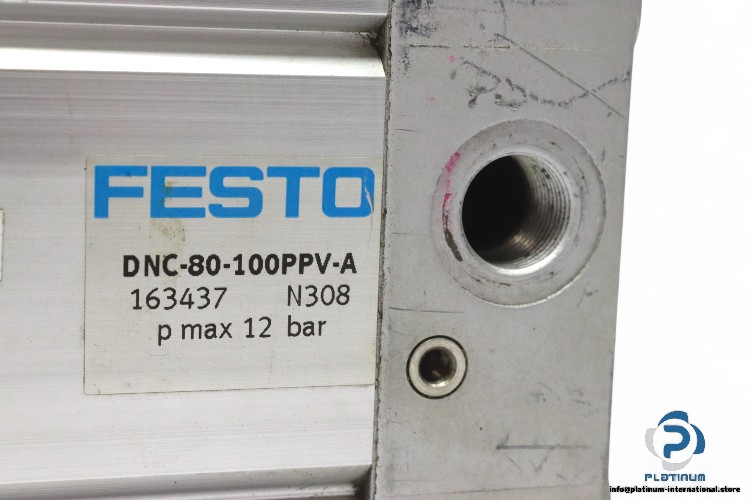

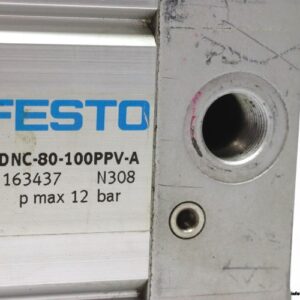

Model: DNC80100PPVA

Part No.: 163437

Technical Specifications

• Media: Compressed Air
• Bore Diameter: 80 mm
• Stroke: 100 mm
• Bore x Stroke: 80 x 100 mm
• Rod Diameter: 25 mm
• Frame Dimensions: 94 x 270 mm
• Pneumatic Connection: G 3/8
• Pressure Max.: 12 bar
• Operation Mode: Double
• Piston Rod End: Male
• Shape: Square
• Rod Direction: One Side
