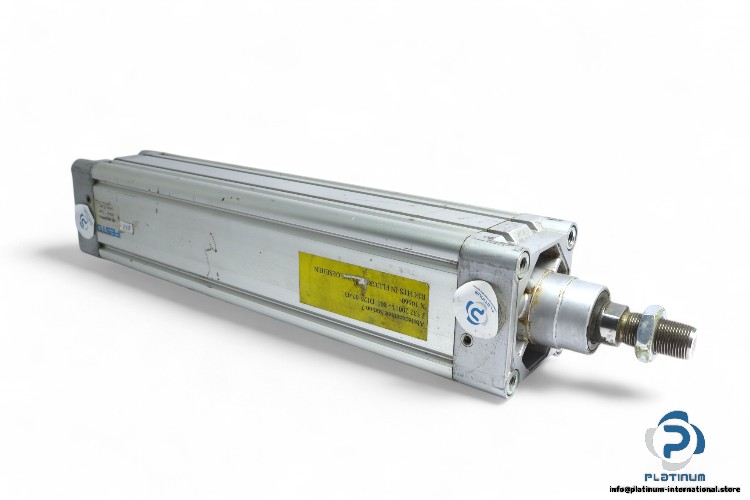

Manufacturer: FESTO
Type: ISO Cylinder
Model: DNC-80-320PPV-A
Part No.: 163442

Media: Compressed Air
Stroke: 320 mm
Bore diameter: 80 mm
Bore X Stroke: 80×320 mm
Rod diameter: 25 mm
Fram Dimensions: 93X485 mm
Pneumatic connection: G3/8
Max pressure: 10 bar
Mode of operation: Double
Piston rod end: Male
Shape: Square
Rod Direction: One Sid
