FESTO DNCB-63-170-PPV-A ISO CYLINDER

festo-DNCB-63-170-PPV-A-iso-cylinder-(Used)
festo-DNCB-63-170-PPV-A-iso-cylinder-(Used)-1
festo-DNCB-63-170-PPV-A-iso-cylinder-(Used)
festo-DNCB-63-170-PPV-A-iso-cylinder-(Used)-1
Used
Manufacturer: Festo

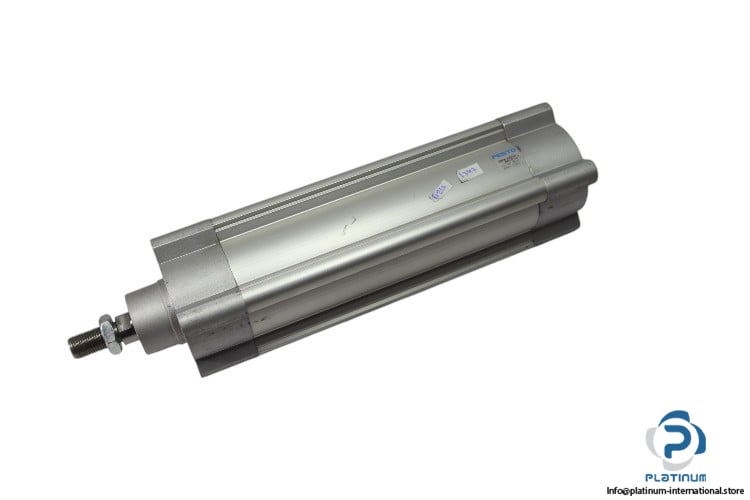

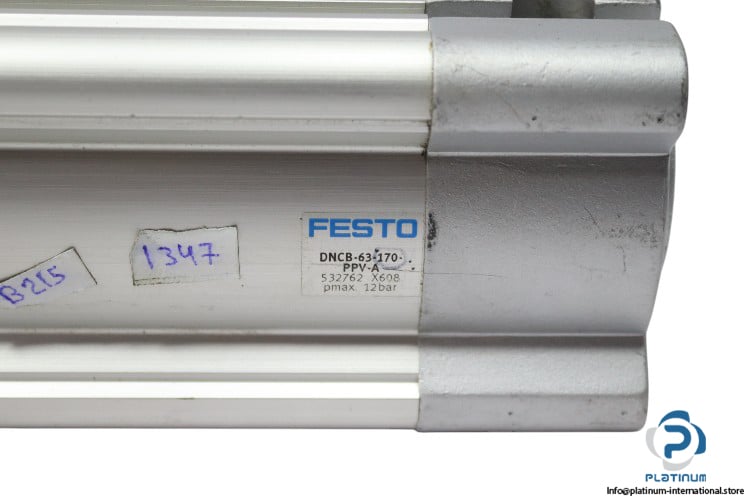

FESTO DNCB-63-170-PPV-A ISO CYLINDER

ISO Cylinder

FESTO DNCB-63-170-PPV-A ISO Cylinder is designed for high-precision pneumatic applications. With a 63 mm bore diameter, 170 mm stroke, and double-acting operation, it ensures efficient motion control. The square design and male piston rod end provide stability and reliability in industrial automation.

SKU: 1062108 Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , ,
In stock: 1 pcs
Very low
Hurry! Only 1 left in stock.
Add to quote

FESTO DNCB-63-170-PPV-A ISO Cylinder

The FESTO DNCB-63-170-PPV-A ISO Cylinder is a high-performance pneumatic actuator designed for precision motion control in industrial automation. Engineered for efficiency and durability, this double-acting cylinder ensures smooth and reliable operation in demanding environments.

  • Manufacturer: FESTO
  • Type: ISO Cylinder
  • Model: DNCB-63-170-PPV-A
  • Part No.: 532762

Technical Information

  • Media: Compressed Air
  • Bore Diameter: 63 mm
  • Stroke: 170 mm
  • Bore x Stroke: 63 x 170 mm
  • Rod Diameter: 20 mm
  • Frame Dimensions: 75 x 320 mm
  • Pneumatic Connection: G 1/4
  • Pressure Max.: 12 bar
  • Operation Mode: Double
  • Piston Rod End: Male
  • Shape: Square
  • Rod Direction: One Side
Weight2,75 kg
