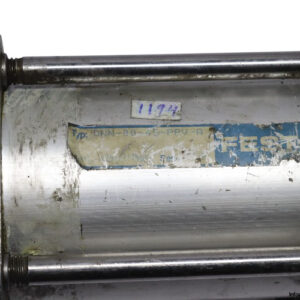

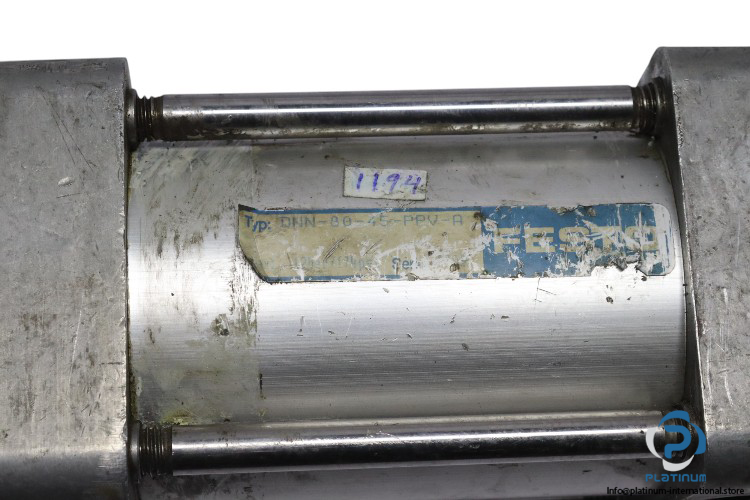

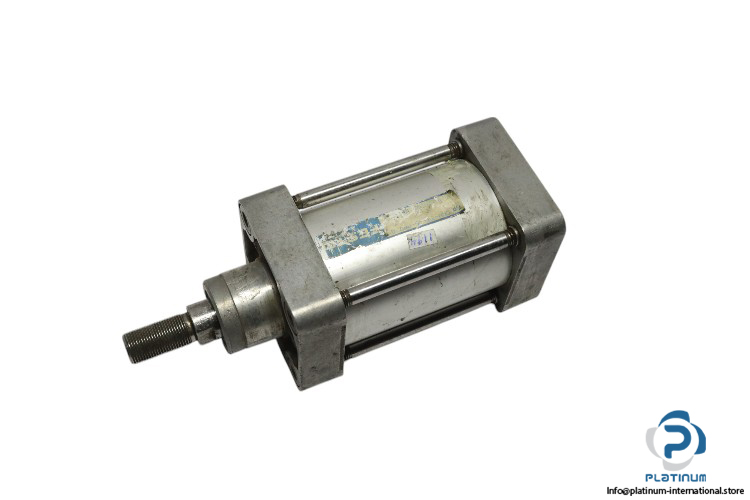

FESTO ISO Cylinder DNN-80-45-PPV-A

The FESTO ISO Cylinder DNN8045PPVA is a reliable and high-performance pneumatic actuator designed for industrial applications. With a bore diameter of 80 mm and a stroke of 45 mm, this cylinder offers efficient and smooth operation in a variety of systems.

Manufacturer: FESTO

Model: DNN-80-45-PPV-A

Technical Specifications

• Media: Compressed Air
• Bore Diameter: 80 mm
• Stroke: 45 mm
• Bore x Stroke: 80 x 45 mm
• Rod Diameter: 25 mm
• Frame Dimensions: 96 x 215 mm
• Pneumatic Connection: G 3/8
• Pressure Max.: 12 bar
• Operation Mode: Double
• Piston Rod End: Male
• Shape: Square
• Rod Direction: One Side
