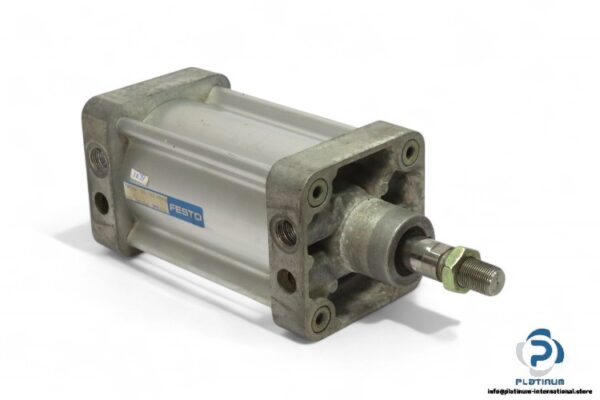

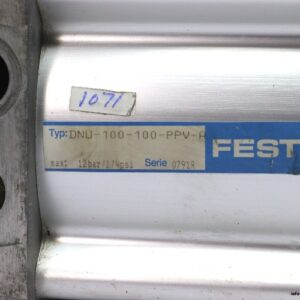

FESTO ISO Cylinder DNU-100-100-PPV-A
The FESTO ISO Cylinder DNU-100-100-PPV-A is a high-quality pneumatic cylinder designed for efficient operation with compressed air. This double-acting cylinder features a 100 mm bore diameter and a 100 mm stroke, ensuring precise and reliable movement in industrial automation applications.
Manufacturer: FESTO
Type: ISO Cylinder
Model: DNU100100PPVA
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 100 mm
- Stroke: 100 mm
- Bore x Stroke: 100 x 100 mm
- Rod Diameter: 25 mm
- Frame Dimensions: 126 x 280 mm
- Pneumatic Connection: G 1/2
- Pressure Max.: 12 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
