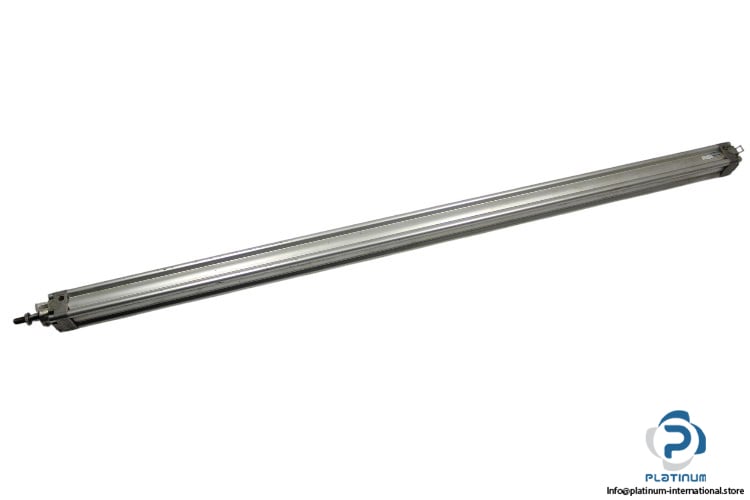

FESTO ISO Cylinder DNU-32-1000PPV-A

The FESTO ISO Cylinder DNU321000PPVA is a high-performance cylinder designed for pneumatic applications. With a bore diameter of 32 mm and a stroke of 1000 mm, it ensures precise and efficient operation in a variety of industrial systems. Featuring a double operation mode and a durable male piston rod end, it delivers optimal performance even under demanding conditions.

Manufacturer: FESTO

Type: ISO Cylinder

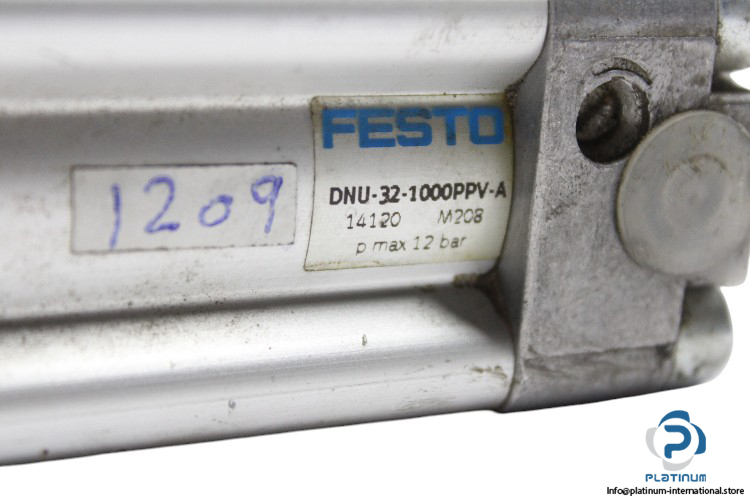

Model: DNU-32-1000PPV-A

Part No.: 14120

Technical Specifications

• Media: Compressed Air
• Bore Diameter: 32 mm
• Stroke: 1000 mm
• Bore x Stroke: 32 x 1000 mm
• Rod Diameter: 12 mm
• Frame Dimensions: 45 x 1115 mm
• Pneumatic Connection: G 1/8
• Pressure Max.: 12 bar
• Operation Mode: Double
• Piston Rod End: Male
• Shape: Square
• Rod Direction: One Side
