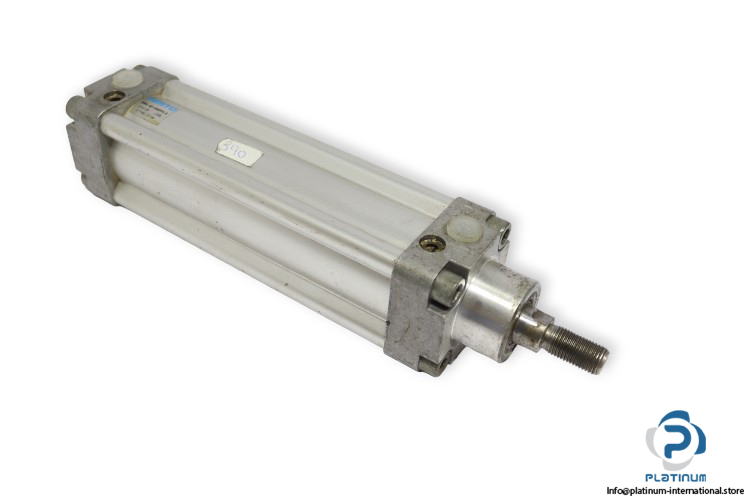

Manufacturer: Festo
Type: ISO Cylinder

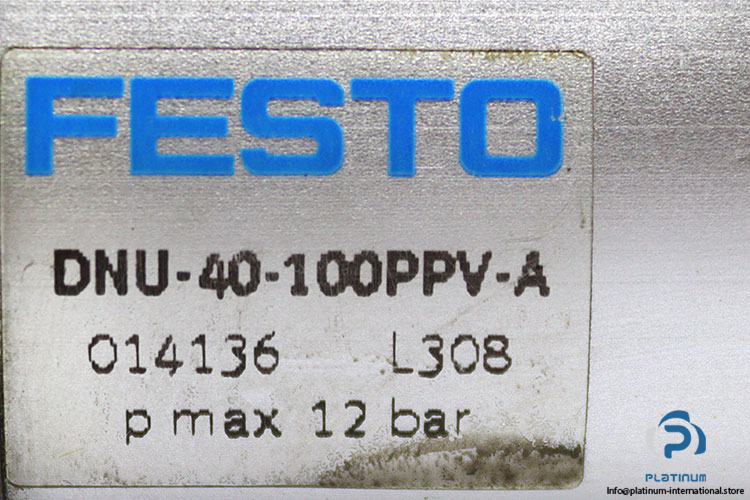

Model: DNU40100PPVA
Part. No: 014136


Media: Compressed Air
Stroke (mm): 100
Bore diameter (mm): 40
BorexStroke (mm): 40×100
Rod diameter (mm): 16
Fram Dimensions (mm): 232×55
Maximum pressure (bar): 12
Pneumatic connection: G1/4
Mode of operation: Double
Piston rod end: Male
Shape: Square
Rod Direction: One Side
