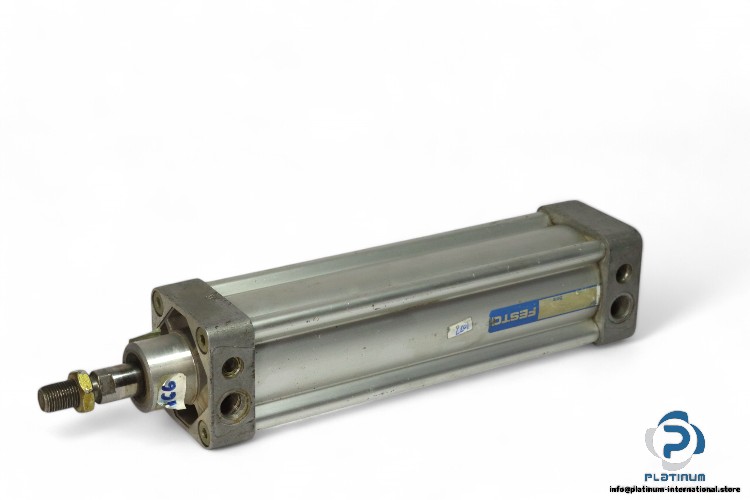

FESTO DNU-63-200-PPV-A ISO CYLINDER

The FESTO DNU-63-200-PPV-A ISO Cylinder is a high-quality pneumatic solution, designed for precision and durability in industrial applications. This double-acting cylinder features a 63 mm bore, 200 mm stroke, and a robust frame, providing reliable performance under pressure.

Manufacturer: FESTO

Type: ISO CYLINDER

Model: DNU-63-200-PPV-A

Part No.: 14161

Technical Specifications

• Media: Compressed Air
• Bore Diameter: 63 mm
• Stroke: 200 mm
• Bore X Stroke: 63×200 mm
• Rod Diameter: 20 mm
• Frame Dimensions: 80×345 mm
• Pneumatic Connection: G3/8
• Max Pressure: 12 bar
• Mode of Operation: Double
• Piston Rod End: Male
• Shape: Square
• Rod Direction: One Side
