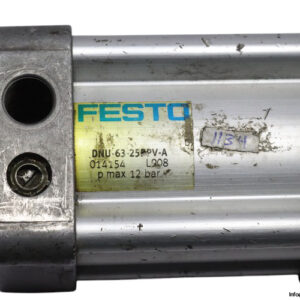

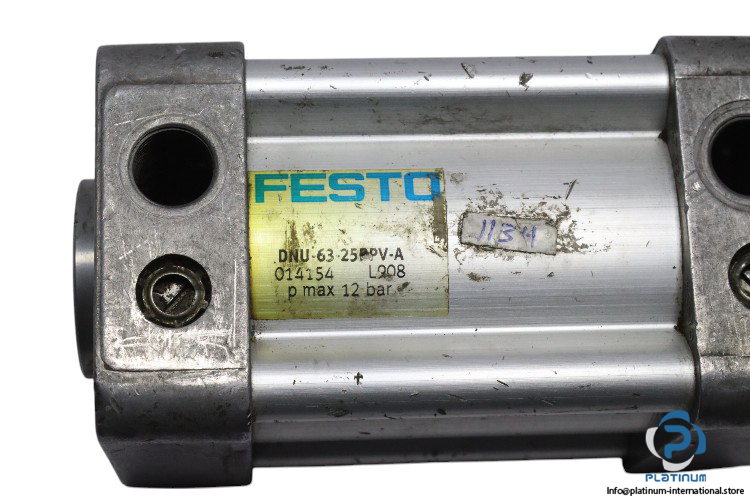

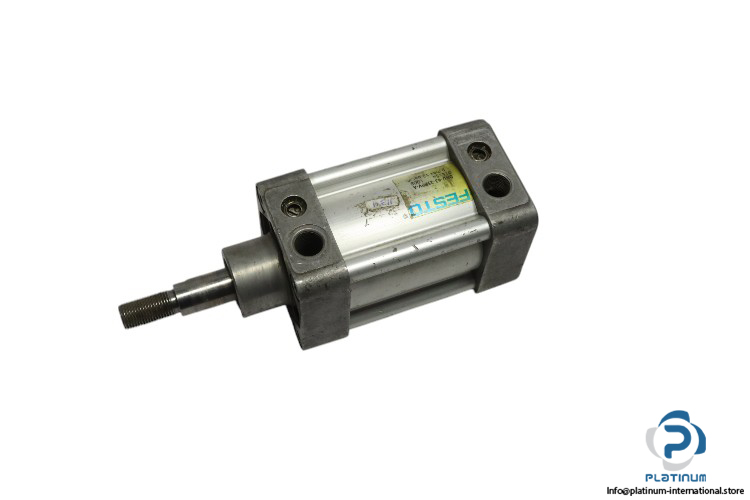

FESTO ISO Cylinder DNU-63-25PPV-A

The FESTO ISO Cylinder DNU-63-25PPV-A is a high-quality pneumatic cylinder designed for precise and efficient movement. Built for use with compressed air, this cylinder features a 63 mm bore diameter and a 25 mm stroke, ensuring smooth and reliable performance in various industrial applications.

Manufacturer: FESTO

Model: DNU-63-25PPV-A

Part No.: 014154

Technical Specifications

• Media: Compressed Air
• Bore Diameter: 63 mm
• Stroke: 25 mm
• Bore x Stroke: 63 x 25 mm
• Rod Diameter: 20 mm
• Frame Dimensions: 80 x 180 mm
• Pneumatic Connection: G 3/8
• Pressure Max.: 12 bar
• Operation Mode: Double
• Piston Rod End: Male
• Shape: Square
• Rod Direction: One Side
