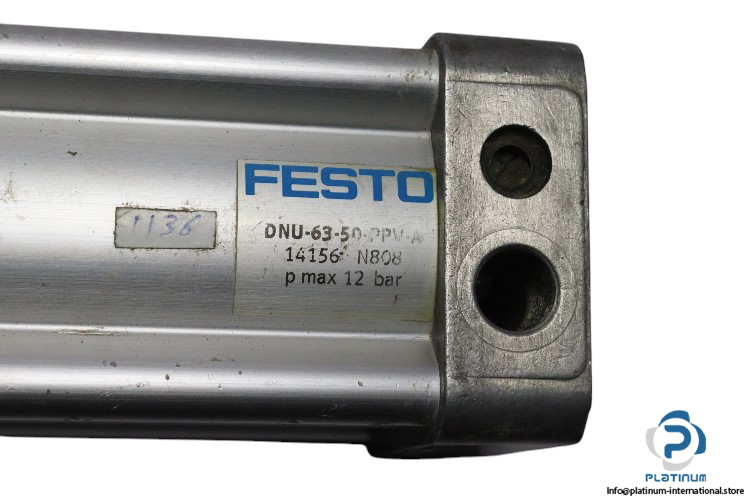

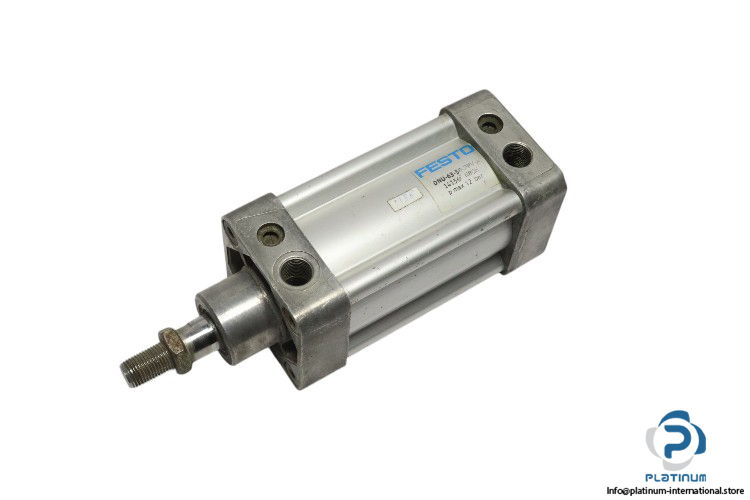

FESTO ISO Cylinder DNU-63-50-PPV-A

The FESTO ISO Cylinder DNU-63-50-PPV-A is designed for efficient pneumatic control in industrial applications. With a bore diameter of 63 mm and a stroke of 50 mm, this double-acting cylinder ensures reliable performance under pressure up to 12 bar, making it ideal for high-demand systems.

Manufacturer: FESTO

Type: ISO Cylinder

Model: DNU-63-50-PPV-A

Part No.: 14156

Technical Specifications

• Media: Compressed Air
• Bore Diameter: 63 mm
• Stroke: 50 mm
• Bore x Stroke: 63 x 50 mm
• Rod Diameter: 20 mm
• Frame Dimensions: 80 x 200 mm
• Pneumatic Connection: G 3/8
• Pressure Max.: 12 bar
• Operation Mode: Double
• Piston Rod End: Male
• Shape: Square
• Rod Direction: One Side
