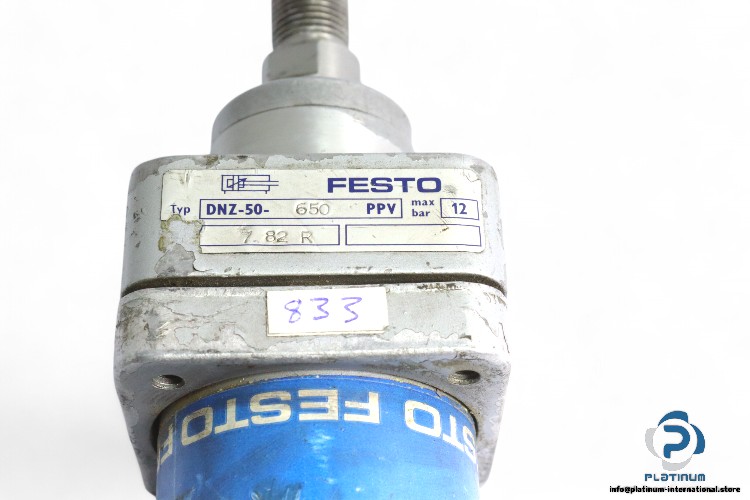

Manufacturer: FESTO
Type: ISO Cylinder
Model: DNZ-50-650PPV

Media: Compressed Air
Stroke: 650 mm
Bore diameter: 50 mm
Bore X Stroke: 50×650 mm
Rod diameter: 20 mm
Fram Dimensions: 65X785 mm
Pneumatic connection: G1/4
Max pressure: 12 bar
Mode of operation: Double
Piston rod end: Male
Shape: Circular
Rod Direction: One Sid
