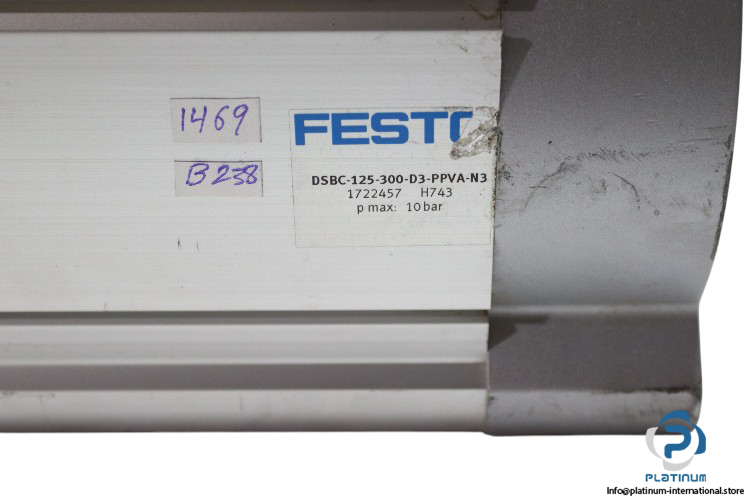

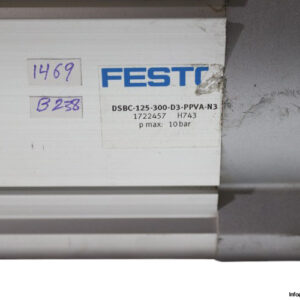

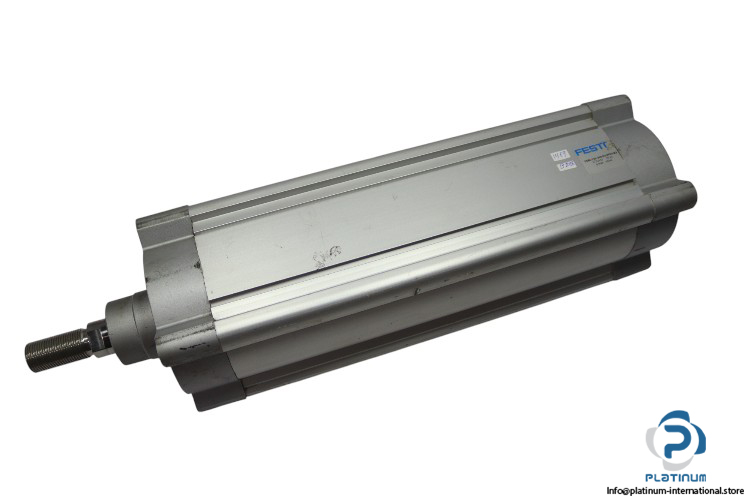

Festo DSBC-125-300-D3-PPVA-N3 ISO Cylinder

The Festo DSBC-125-300-D3-PPVA-N3 ISO Cylinder is a powerful and precise actuator built for high-performance pneumatic applications. With a robust square design, 125 mm bore, and 300 mm stroke, it is engineered to deliver smooth and efficient motion under demanding industrial conditions.

Manufacturer: FESTO

Type: ISO Cylinder

Model: DSBC-125-300-D3-PPVA-N3

Part No.: 1722457

Technical Information:

• Media: Compressed Air
• Bore Diameter: 125 mm
• Stroke: 300 mm
• Bore x Stroke: 125 x 300 mm
• Rod Diameter: 33 mm
• Frame Dimensions: 135 x 510 mm
• Pneumatic Connection: G 1/2
• Pressure Max.: 10 bar
• Operation Mode: Double
• Piston Rod End: Male
• Shape: Square
• Rod Direction: One Side
