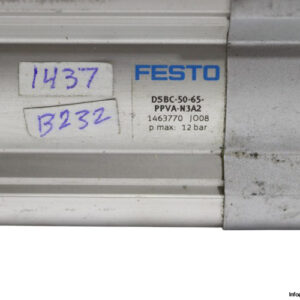

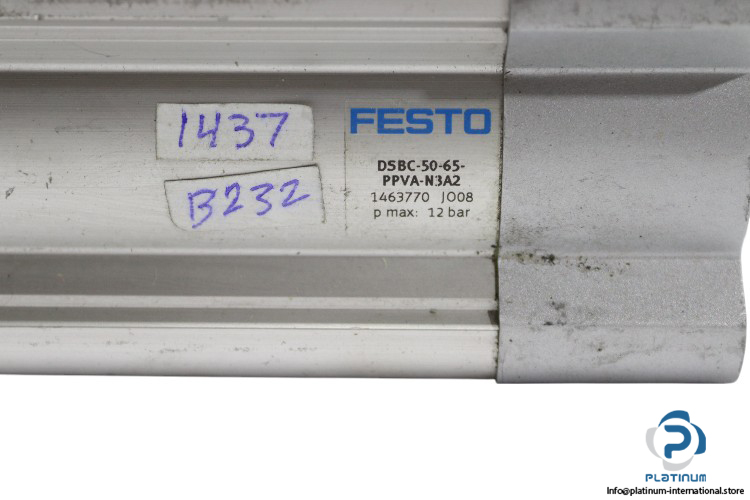

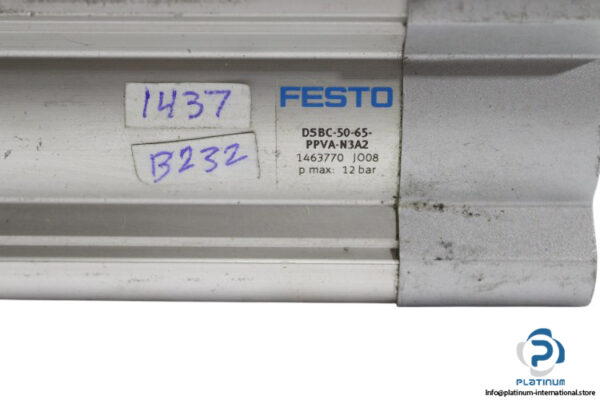

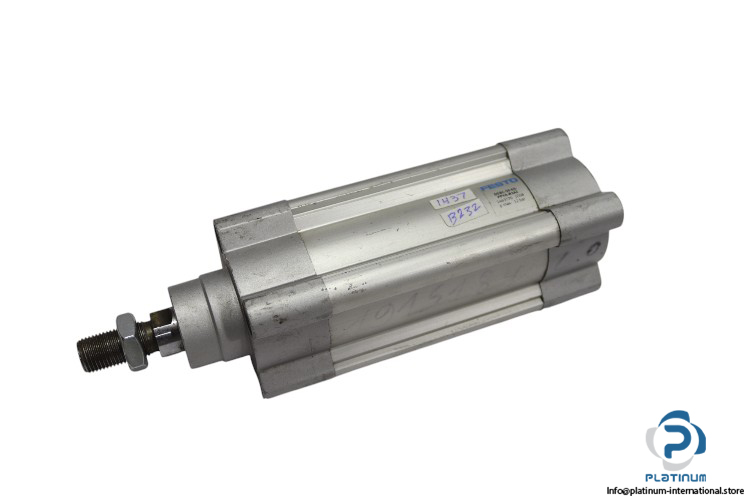

Festo DSBC-50-65-PPVA-N3A2 ISO Cylinder

The Festo DSBC-50-65-PPVA-N3A2 ISO Cylinder is a precision-engineered pneumatic actuator designed for high-performance industrial applications. With a robust square frame and reliable double-acting operation, it delivers consistent force and motion control under pressures up to 12 bar.

Manufacturer: FESTO

Type: ISO Cylinder

Model: DSBC-50-65-PPVA-N3A2

Part No.: 1463770

Technical Information:

• Media: Compressed Air
• Bore Diameter: 50 mm
• Stroke: 65 mm
• Bore x Stroke: 50 x 65 mm
• Rod Diameter: 20 mm
• Frame Dimensions: 62 x 200 mm
• Pneumatic Connection: G 1/4
• Pressure Max.: 12 bar
• Operation Mode: Double
• Piston Rod End: Male
• Shape: Square
• Rod Direction: One Side
