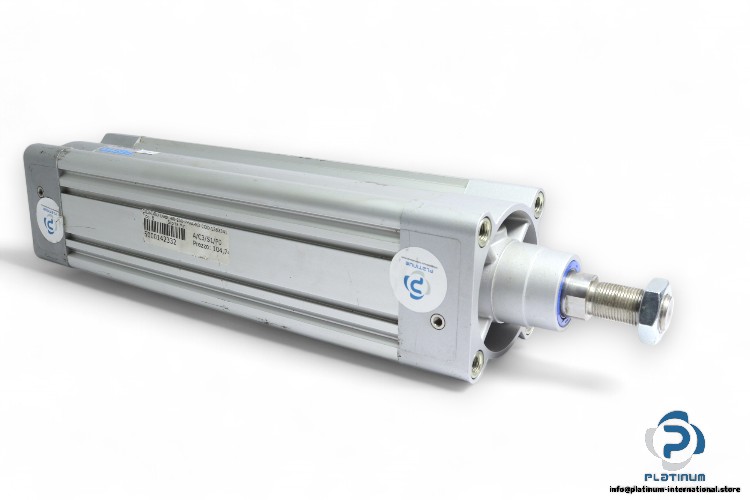

Manufacturer: FESTO
Type: ISO Cylinder

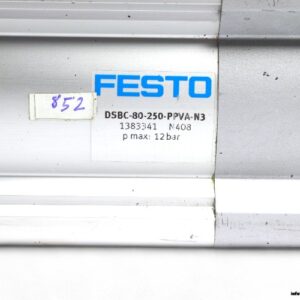

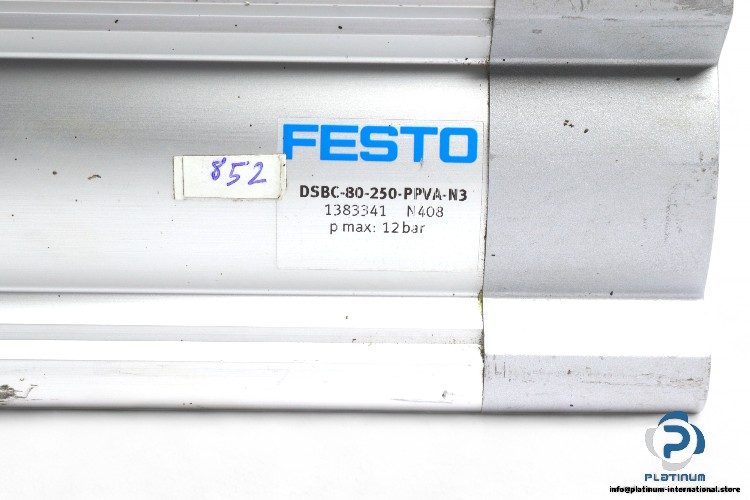

Model: DSBC-80-250-PPVA-N3
Part. No: 1383341


Media: Compressed Air
Stroke: 250 mm
Bore diameter: 80 mm
Bore X Stroke: 80×250 mm
Rod diameter: 25 mm
Fram Dimensions: 93X415 mm
Pneumatic connection: G3/8
Max pressure: 12 bar
Mode of operation: Double
Piston rod end: Male
Shape: Square
Rod Direction: One Sid
