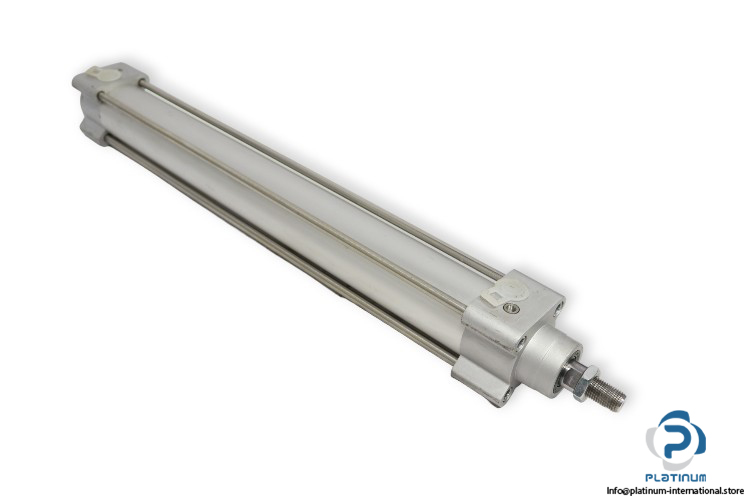

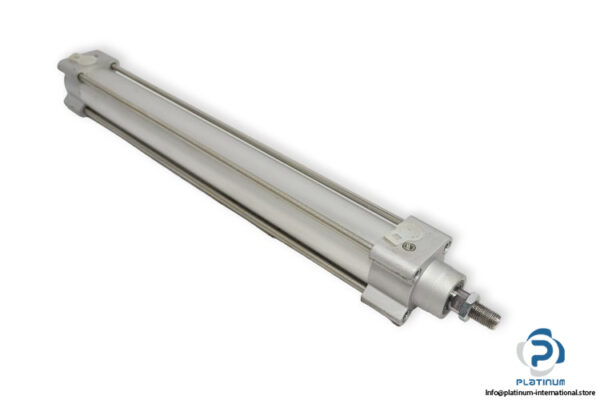

Manufacturer: Festo
Type: ISO Cylinder

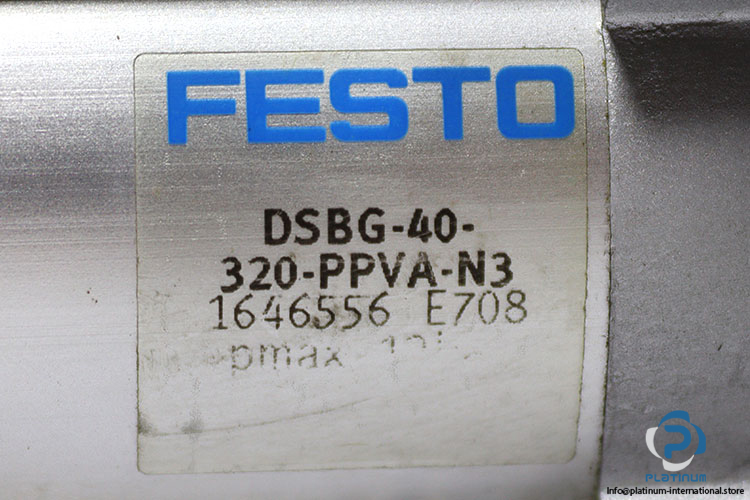

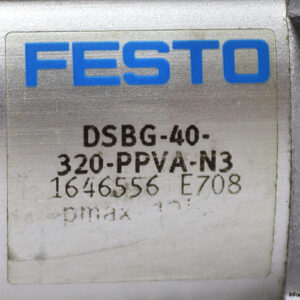

Model: DSBG40320PPVAN3
Part. No: 1646556


Media: Compressed Air
Stroke (mm): 320
Bore diameter (mm): 40
BorexStroke (mm): 40×320
Rod diameter (mm): 16
Fram Dimensions (mm): 450×54
Maximum pressure (bar): 12
Pneumatic connection: G1/4
Mode of operation: Double
Piston rod end: Male
Shape: Square
Rod Direction: One Side
