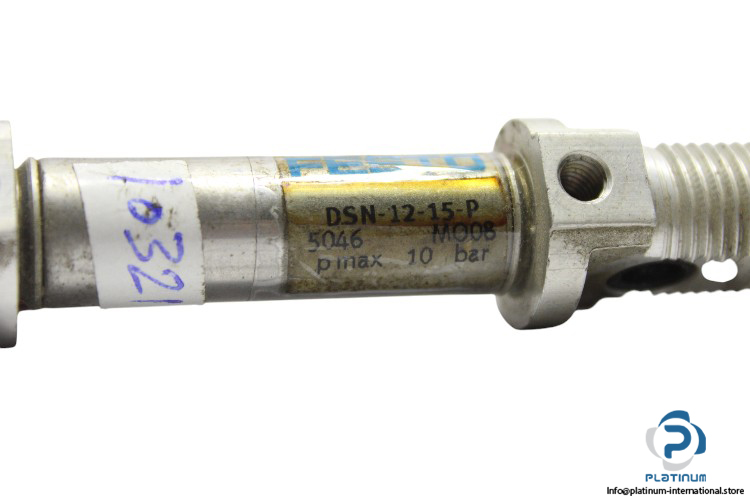

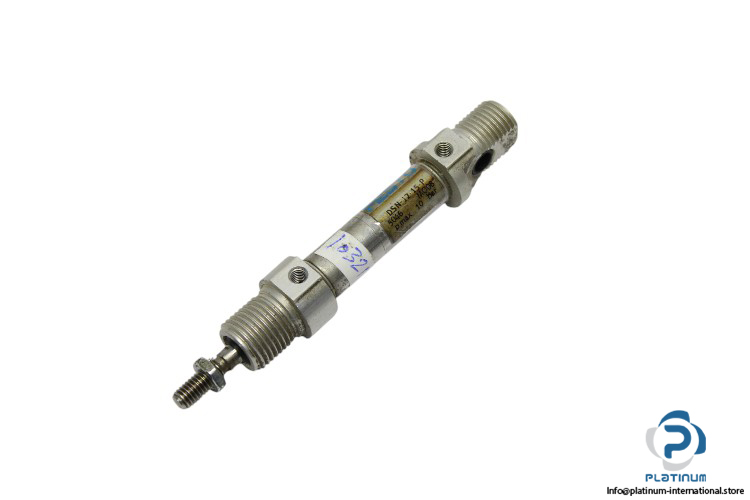

FESTO Round Cylinder DSN-12-15-P

The FESTO Round Cylinder DSN1215P is designed for high-performance actuation in industrial automation systems. With a piston diameter of 12 mm and a stroke length of 15 mm, this cylinder operates efficiently with compressed air as the fluid. Capable of handling up to 10 bar of pressure, it features a double-acting operation mode, making it suitable for a variety of automation applications. The cylinder is equipped with a 5 mm port size for easy installation and use in space-constrained systems.

Manufacturer: FESTO

Type: Round Cylinder

Model: DSN-12-15-P

Part No.: 5046

Technical Specifications

• Fluid: Compressed Air
• Piston Diameter: 12 mm
• Stroke Length: 15 mm
• Pressure Max.: 10 bar
• Operation Mode: Double Acting
• Port Size: 5 mm
