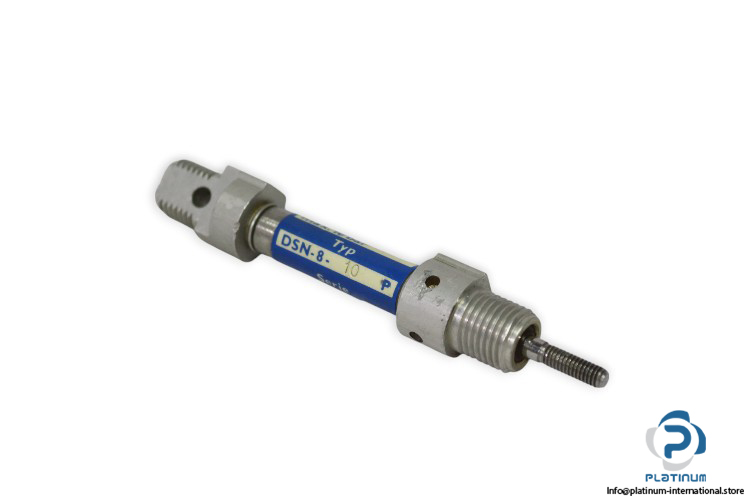

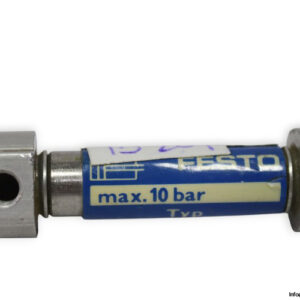

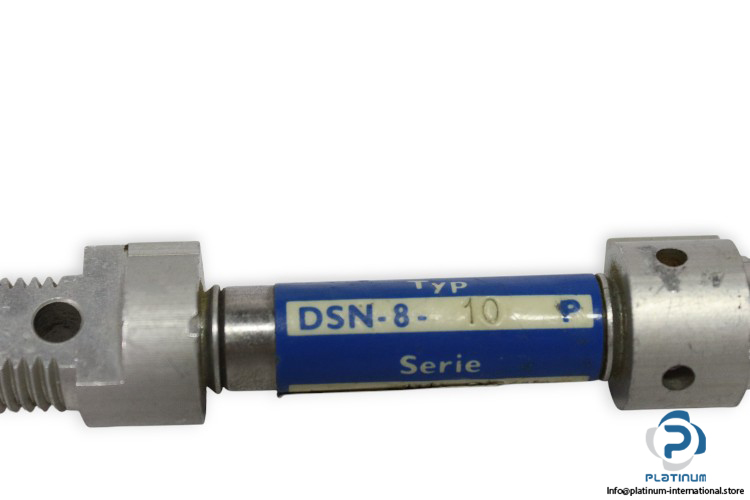

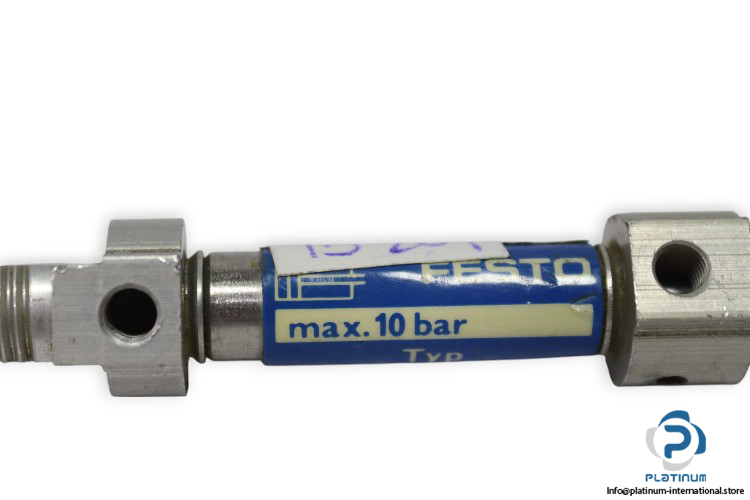

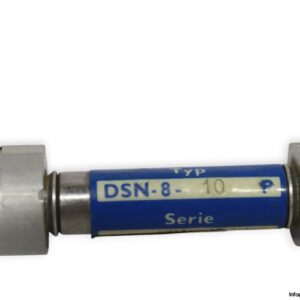

FESTO DSN-8-10 P ISO CYLINDER
The Festo DSN-8-10 P is a compact and reliable ISO cylinder designed for industrial pneumatic systems. This double-acting actuator provides consistent performance with a short stroke, ideal for space-constrained applications.
Manufacturer: Festo
Type: Iso Cylinder
Model: DSN-8-10 P
Technical Information
- Connection: 5 mm
- Pressure: Max. 10 bar
- Stroke: 10 mm
- Piston Diameter: 8 mm
- Piston Rod Thread: M4
- Piston-Rod End: Male thread
- Operating Pressure: 1.5 to 10 bar
- Mode of Operation: Double-acting
- Ambient Temperature: -20 to 80 °C
- Operating Medium: Compressed air
