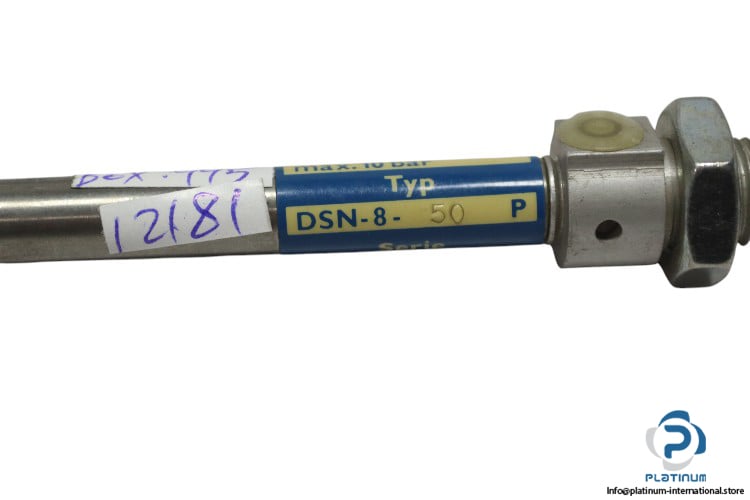

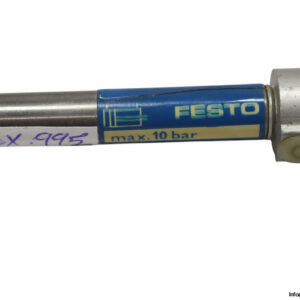

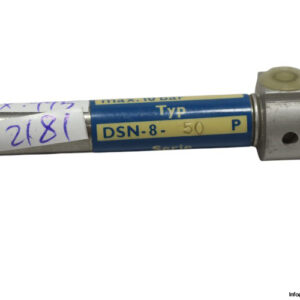

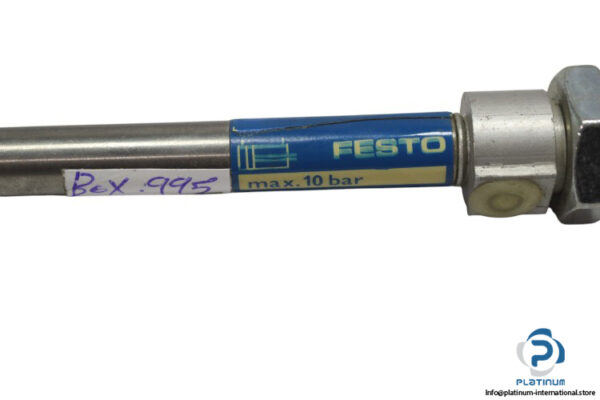

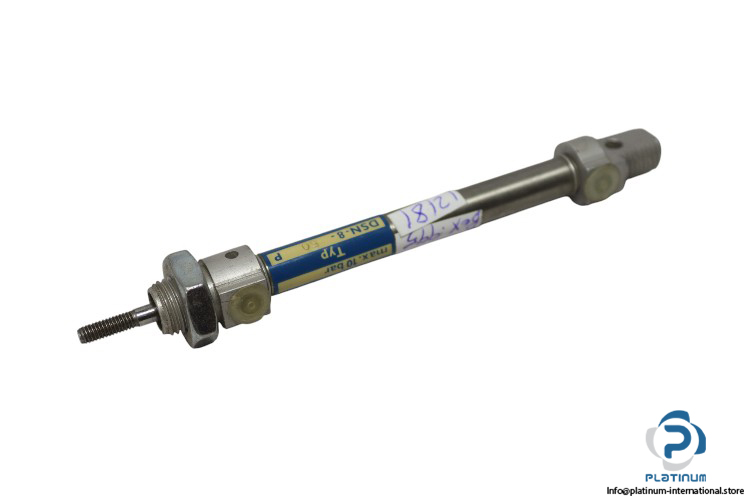

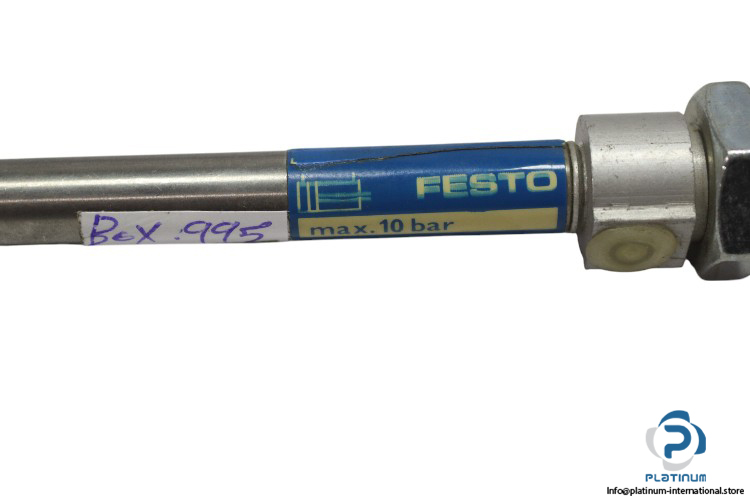

Festo DSN-8-50 P ISO Cylinder
The Festo DSN-8-50 P is a precision-engineered ISO cylinder designed for reliable performance in pneumatic automation systems. This compact, double-acting cylinder features robust construction materials and is ideal for high-precision applications in various industrial environments.
Manufacturer: Festo
Type: ISO Cylinder
Model: DSN-8-50 P
Technical Information:
- Piston Diameter: 8 mm
- Stroke: 50 mm
- Operating Medium: Compressed Air
- Pneumatic Connection: 5 mm
- Mode of Operation: Double Acting
- Max. Operating Pressure: 10 bar
- Piston Rod End: Male
- Ambient Temperature: -20 to 80 °C
- Material for Cover: Wrought Aluminum Alloy
- Material for Seals: NBR
- Material for Piston Rod: High Alloy Steel, Non-Corrosive
- Shape: Circular
- Rod Direction: One Side
