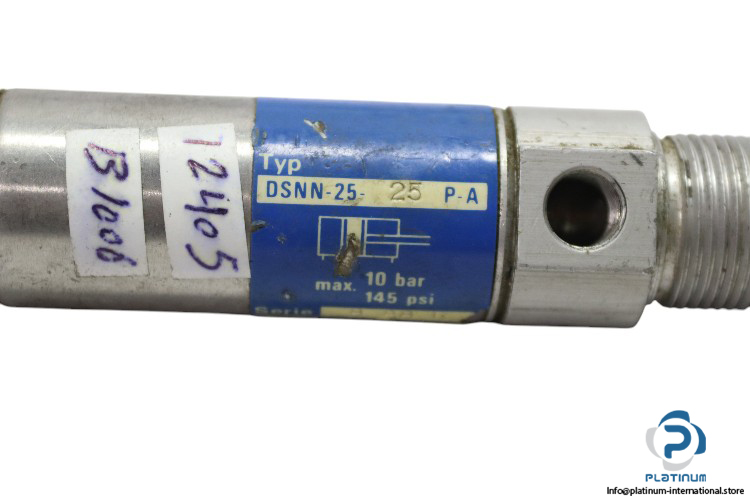

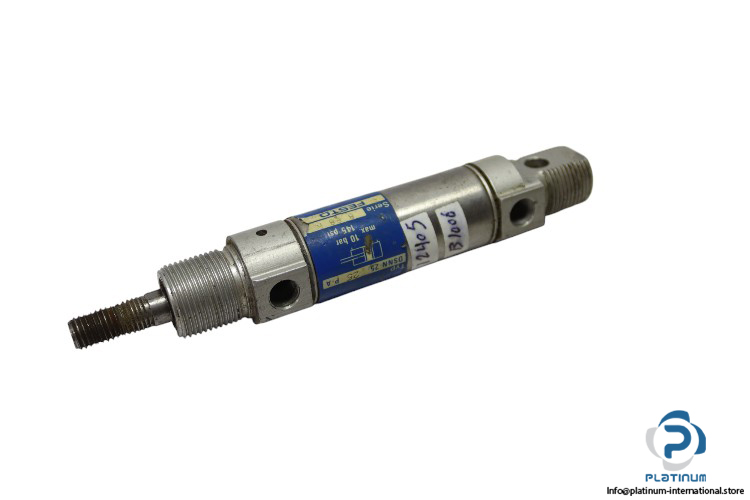

Festo DSNN-25-25-P-A Round Cylinder
The Festo DSNN-25-25-P-A is a compact and reliable round pneumatic cylinder ideal for precise linear motion control in automation systems. Featuring a 25 mm piston diameter and 25 mm stroke, this double-acting unit is designed to operate with compressed air at pressures up to 10 bar.
Manufacturer: Festo
Type: Round Cylinder
Model: DSNN-25-25-P-A
Technical Information:
- Media: Compressed Air
- Piston Diameter: 25 mm
- Stroke: 25 mm
- Pneumatic Connection: G1/8
- Operation Mode: Double Acting
- Piston Rod Thread: Male
- Shape: Circular
- Operating Pressure: Max. 10 bar
