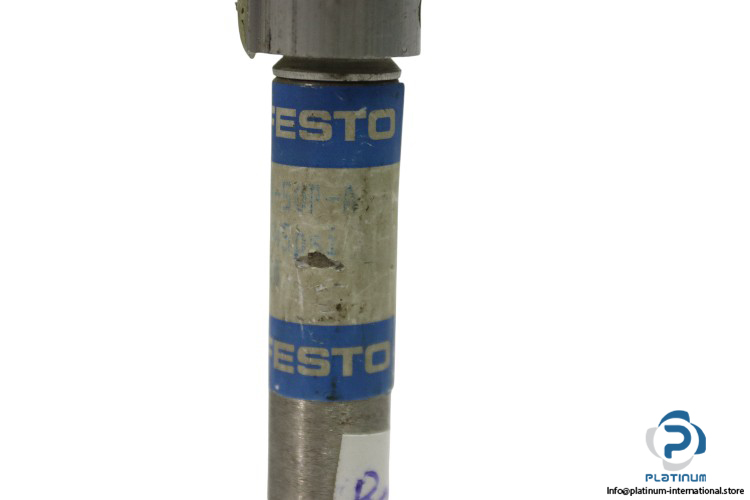

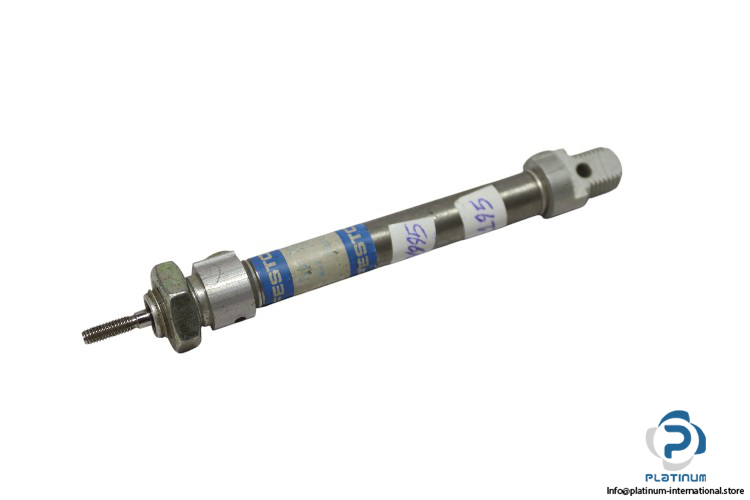

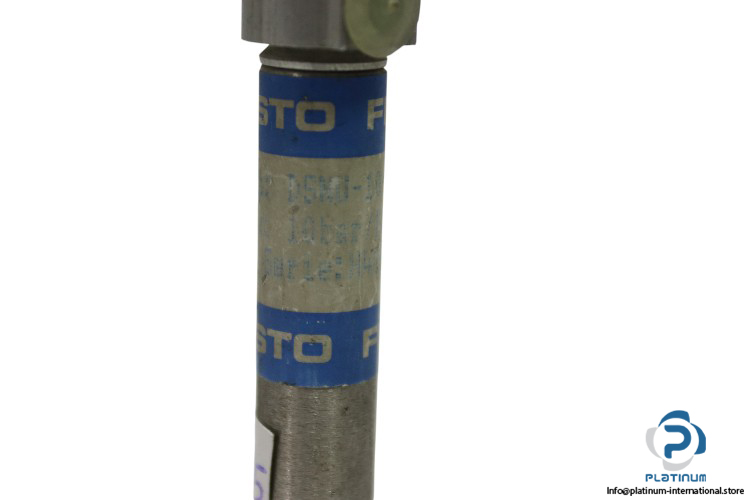

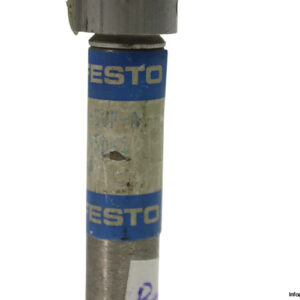

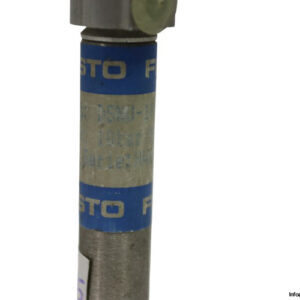

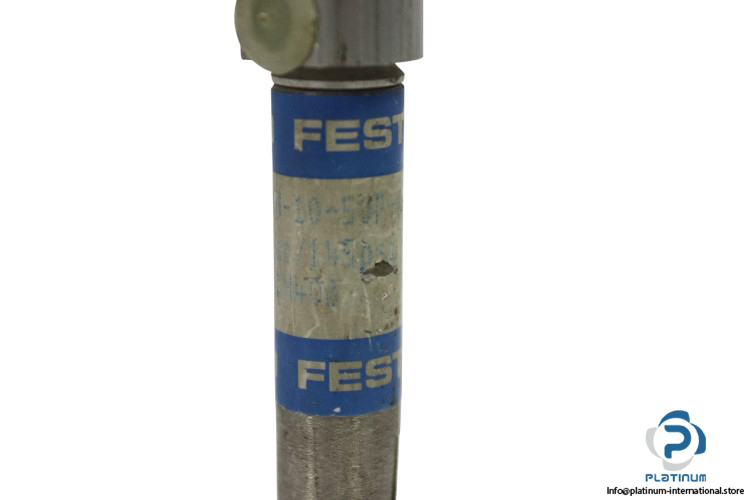

Festo DSNU-10-50-PA ISO Cylinder

The Festo DSNU-10-50-PA is a compact and durable ISO-standard pneumatic cylinder designed for precision control and high reliability in automation systems. Engineered with a circular profile and double-acting mode, it operates efficiently using compressed air under demanding industrial conditions.

Manufacturer: Festo

Type: ISO Cylinder

Model: DSNU-10-50-PA

Technical Information:

• Piston Diameter: 10 mm
• Stroke: 50 mm
• Pneumatic Connection: 5 mm
• Operating Medium: Compressed Air
• Mode of Operation: Double Acting
• Maximum Pressure: 10 bar
• Piston-Rod End: Male Thread
• Shape: Circular
• Rod Direction: One Side
• Ambient Temperature: -20 to 80 °C
• Material Cover: Wrought Aluminum Alloy
• Material Seals: NBR
• Material Piston Rod: High-Alloy Stainless Steel
