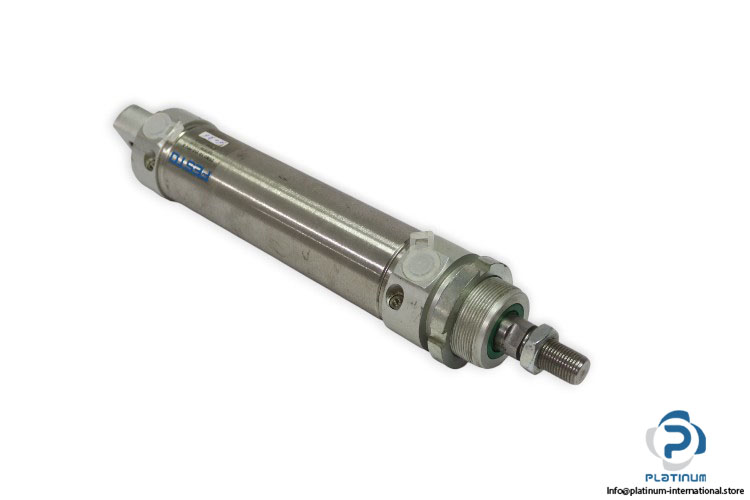

Festo DSNU-50-150-PPV-A Round Cylinder
The Festo DSNU-50-150-PPV-A is a high-performance pneumatic round cylinder designed for precise and reliable motion in industrial automation. With a 50 mm bore size and 150 mm stroke length, this double-acting cylinder ensures optimal performance under demanding conditions. Constructed from durable stainless steel and equipped with high-quality seals, it provides long service life and efficient operation in compressed air systems.
- Manufacturer: Festo
- Type: Round Cylinder

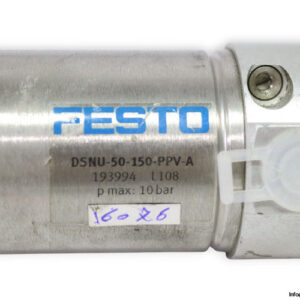

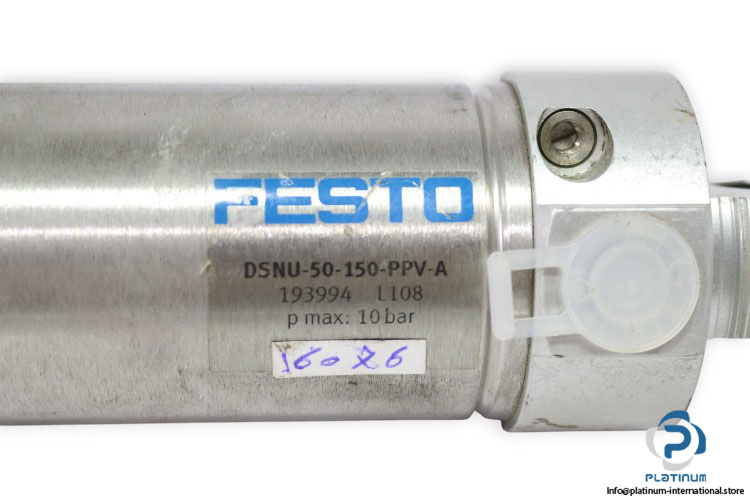

- Model: DSNU-50-150-PPV-A
- Part No.: 193994
- Code: L108
- Series: DSNU
Technical Information
- Media: Compressed Air
- Pressure Rating: Max. 10 bar
- Bore Size: 50 mm
- Stroke Length: 150 mm
- Bore x Stroke: 50×150 mm
- Mode of Operation: Double-acting
- Shape: Circular
- Ambient Temperature: -20 °C to 120 °C
- Material Cover: Wrought aluminum alloy
- Material Seals: NBR, TPE-U(PU)
- Material Piston Rod: High-alloy stainless steel
- Material Cylinder Barrel: High-alloy stainless steel
- Connection: G1/4
