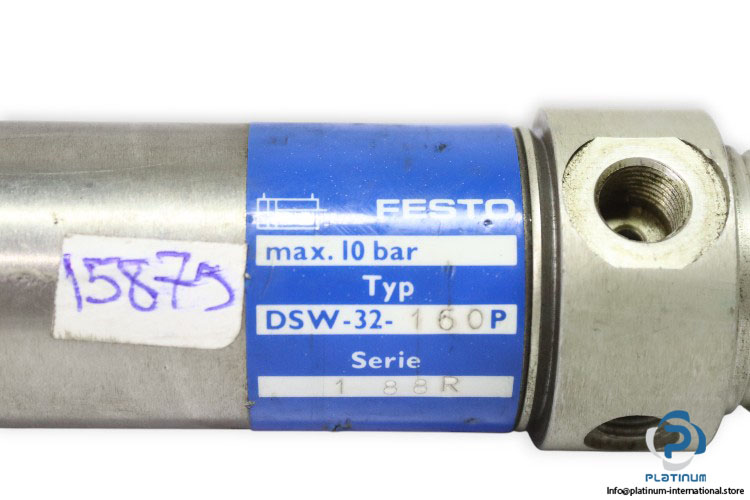

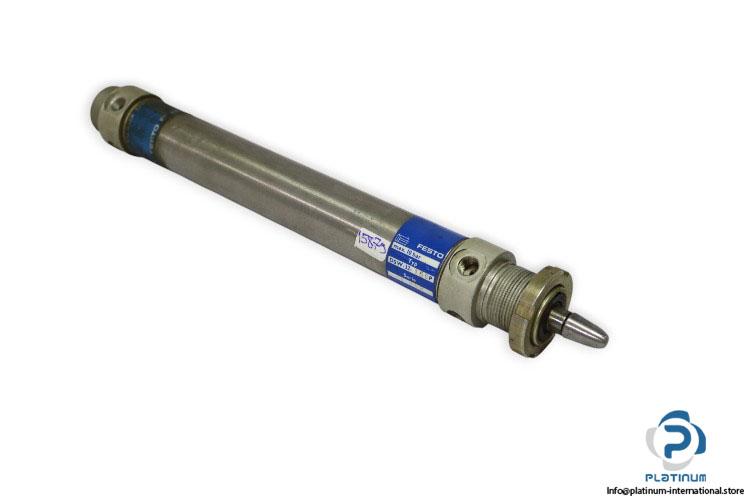

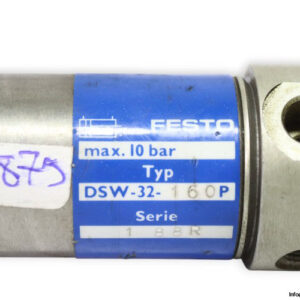

Festo DSW-32-160P Round Cylinder
The Festo DSW-32-160P is a robust double-acting round cylinder designed for precise linear motion in pneumatic systems. With a 160 mm stroke length and 32 mm piston diameter, it ensures reliable performance under demanding industrial conditions. Its compact circular design, end-position cushioning, and high operating pressure capability make it suitable for a wide range of automation applications.
Manufacturer: Festo
Type: Round Cylinder
Model: DSW-32-160P
Series: DSW / 1 88 R
Technical Information
- Stroke Length: 160 mm
- Piston Diameter: 32 mm
- Piston Rod Thread: 12 mm
- Pneumatic Connection: G1/8
- Operating Medium: Compressed Air
- Cushioning: End Position Cushioning
- Max. Operating Pressure: 10 bar
- Shape: Circular
- Piston Action: Double-acting
- Ambient Temperature: -20 to 80 °C
