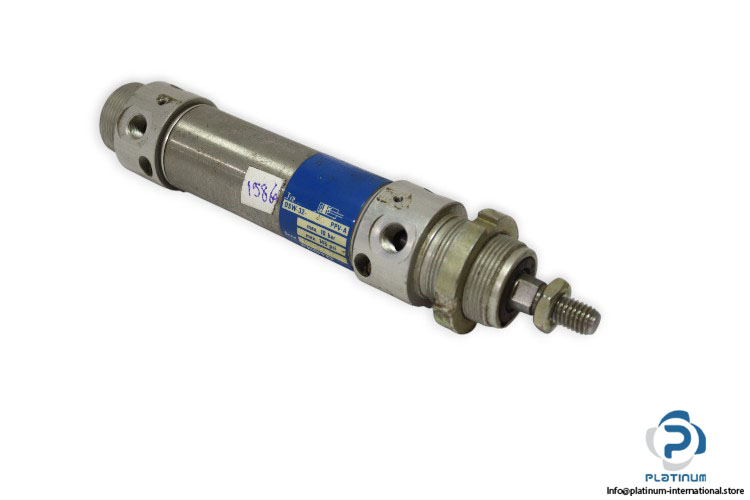

Festo Round Cylinder DSW-32-40PPV-A
The Festo DSW-32-40PPV-A Round Cylinder is a compact and reliable pneumatic actuator designed for precision motion in industrial automation systems. With a double-acting piston and circular housing, it delivers smooth and efficient performance under demanding conditions.
Manufacturer: Festo
Type: Round Cylinder

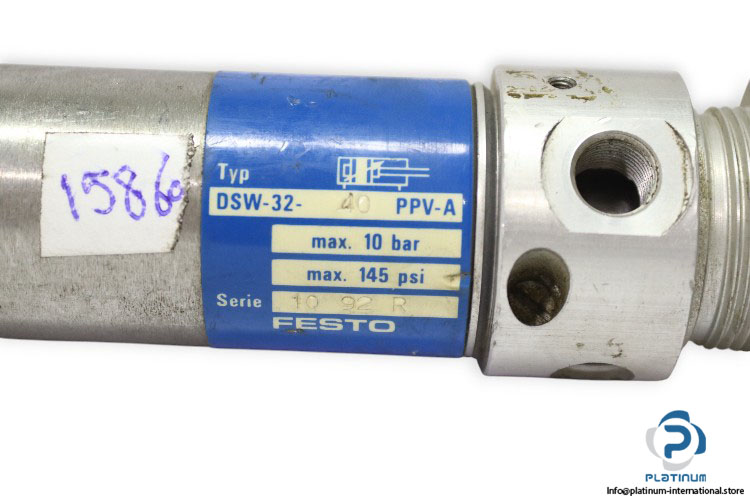

Model: DSW-32-40PPV-A
Series: 10 92 R
Technical Information
- Stroke Length: 40 mm
- Piston Diameter: 32 mm
- Rod Diameter: 12 mm
- Pneumatic Connection: G1/8
- Operating Medium: Compressed Air
- Max. Operating Pressure: 10 bar
- Shape: Circular
- Piston Action: Double-acting
- Variants: Single-ended piston rod
- Temperature Range: -20 to 80°C
