Used
Manufacturer: Festo

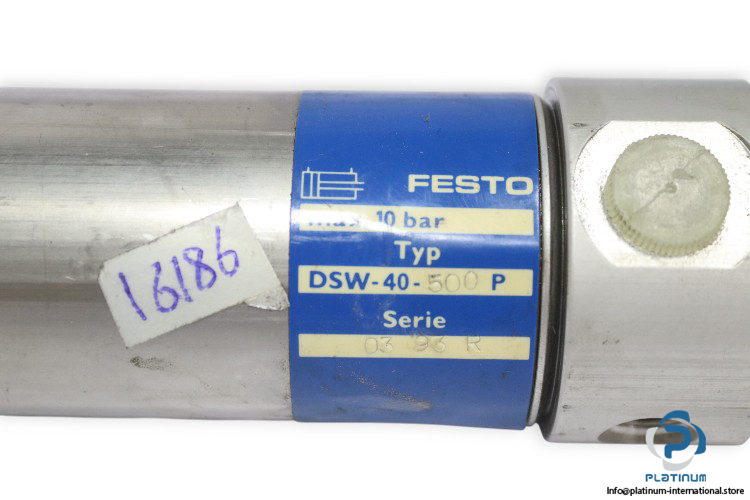

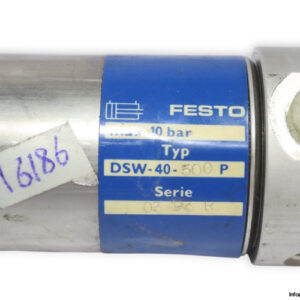

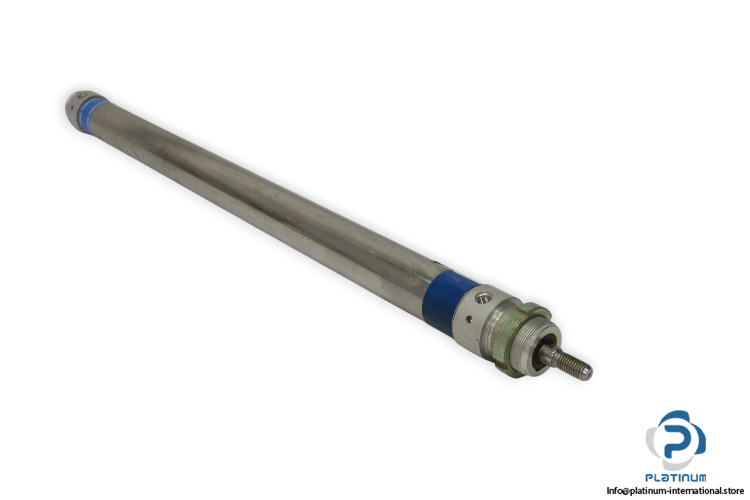

FESTO DSW-40-500 P ROUND CYLINDER

Round Cylinder

The FESTO DSW-40-500P is a double-acting round cylinder with a 500 mm stroke and 40 mm piston, designed for efficient pneumatic motion using compressed air at pressures up to 10 bar.

SKU: 1083641 Category: Tags: , , , , , , , , , , , , , , , , ,
In stock: 1 pcs
Very low
Hurry! Only 1 left in stock.
Add to quote

FESTO DSW-40-500P Round Cylinder

The FESTO DSW-40-500P Round Cylinder offers reliable linear motion and precision control in pneumatic automation systems. Designed with a robust circular body and double-acting piston, it ensures efficient operation and long service life under demanding conditions.

Manufacturer: FESTO
Type: Round Cylinder
Model: DSW-40-500P
Series: DSW / 03 93 R

Technical Information

  • Stroke Length: 500 mm
  • Piston Diameter: 40 mm
  • Pneumatic Connection: G1/4
  • Operating Medium: Compressed Air
  • Variants: Single-ended Piston Rod
  • Max. Operating Pressure: 10 bar
  • Shape: Circular
  • Piston Action: Double-acting
  • Temperature Range: -20 / 80 °C
Weight1,7 kg
