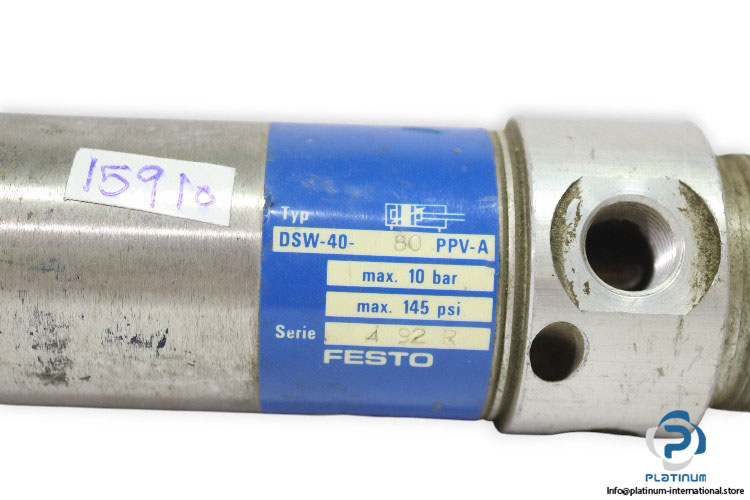

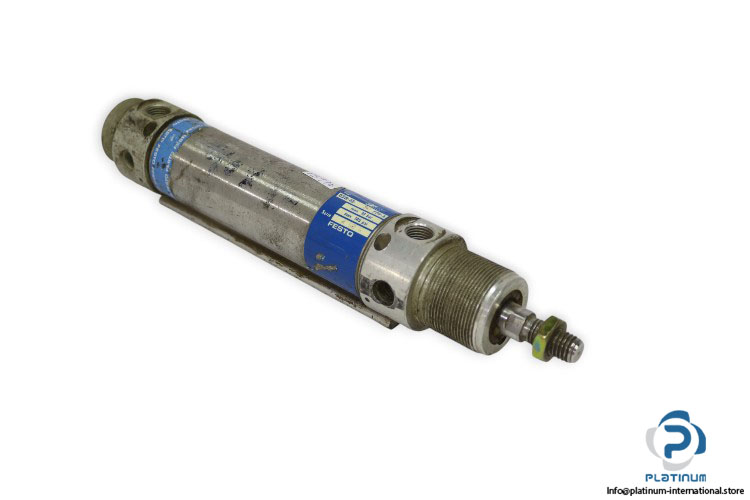

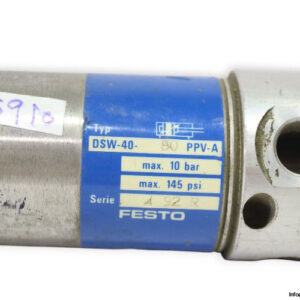

Festo Round Cylinder DSW-40 80 PPV-A
The Festo DSW-40 80 PPV-A is a high-performance round cylinder from the DSW / 4 92 R series. Designed for reliability and precision, it features a double-acting piston, pneumatic cushioning, and robust construction with corrosion-resistant materials. Ideal for demanding pneumatic automation applications.
Manufacturer: Festo
Type: Round Cylinder
Model: DSW-40 80 PPV-A
Series: DSW / 4 92 R
Technical Information
- Stroke Length: 80 mm
- Piston Diameter: 40 mm
- Piston Rod Thread: 12 mm
- Pneumatic Connection: G1/4
- Operating Medium: Dried Compressed Air
- Cushioning: Pneumatic Cushioning Adjustable at Both Ends
- Max. Operating Pressure: 10 bar
- Shape: Circular
- Piston Action: Double-Acting
- Materials (Cover): Wrought Aluminum Alloy
- Materials (Seals): TPE-U (PU), NBR
- Materials (Housing): High Alloy Steel, Non-Corrosive
- Materials (Piston Rod): High Alloy Steel
- Ambient Temperature: -20 to 80 °C
