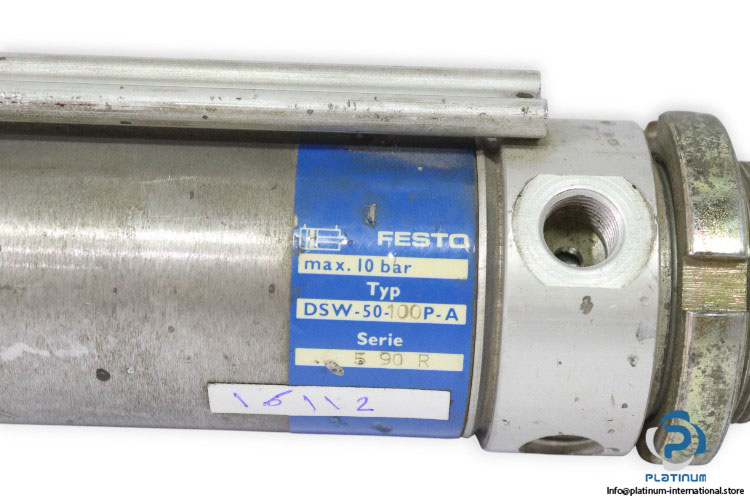

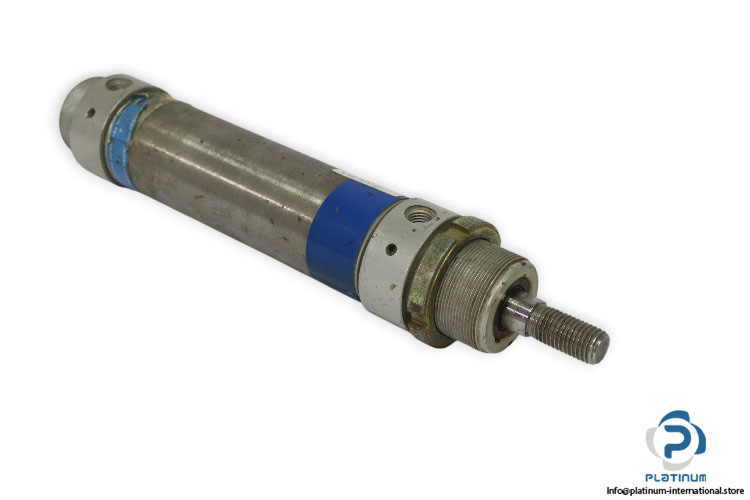

Festo DSW50100PA Round Cylinder
The Festo DSW50100PA is a reliable pneumatic round cylinder engineered for precision motion control in industrial automation. Designed for double-acting operation, it delivers smooth linear motion using compressed air and features flexible cushioning rings for controlled end positions. Its durable circular design and robust materials ensure long service life even under continuous operation.
- Manufacturer: Festo
- Type: Round Cylinder
- Model: DSW50100PA
- Code: 5 90 R
- Series: DSW
Technical Information
- Media: Compressed Air
- Pressure Rating: Max. 10 bar
- Bore Size: 50 mm
- Stroke Length: 100 mm
- Bore x Stroke: 50×100 mm
- Mode of Operation: Double
- Shape: Circular
- Cushioning: Flexible cushioning rings or plates at both ends (P)
- Connection: G1/4
- Ambient Temperature: -20 °C to 80 °C
