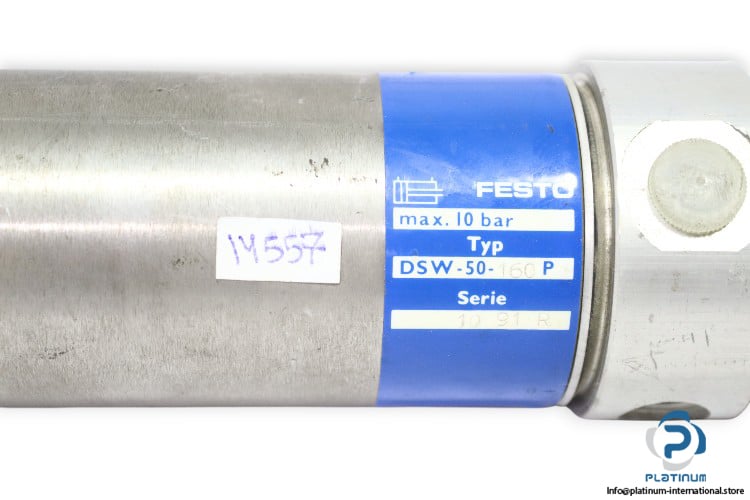

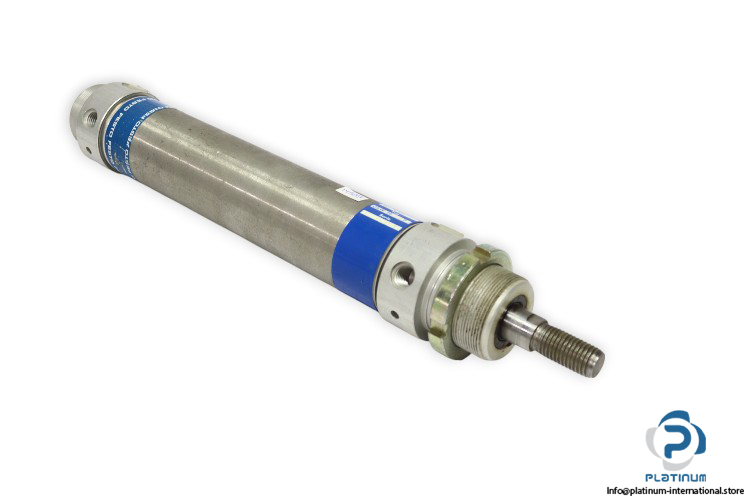

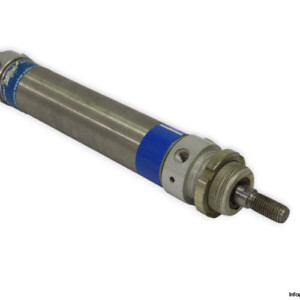

Festo DSW-50-160 P Compact Cylinder

The Festo DSW-50-160 P is a compact pneumatic cylinder from the DSW series, engineered for precise and reliable motion control in industrial automation. With a 50 mm bore size and 160 mm stroke length, this double-acting cylinder ensures efficient performance in compressed air systems. Its aluminum construction, elastic cushioning, and circular design provide durability and smooth operation under demanding conditions.

• Manufacturer: Festo
• Type: Compact Cylinder
• Model: DSW-50-160 P
• Series: DSW
• Code: 10.91 R

Technical Information

• Media: Compressed Air
• Pressure Rating: Max. 10 bar
• Bore Size: 50 mm
• Stroke Length: 160 mm
• Bore x Stroke: 50×160 mm
• Cushioning: Elastic cushioning rings/plates at both ends
• Variants: Single-ended piston rod
• Mode of Operation: Double-acting
• Shape: Circular
• Ambient Temperature: -20 °C to 80 °C
• Material Cover: Aluminum
• Connection: G1/4
