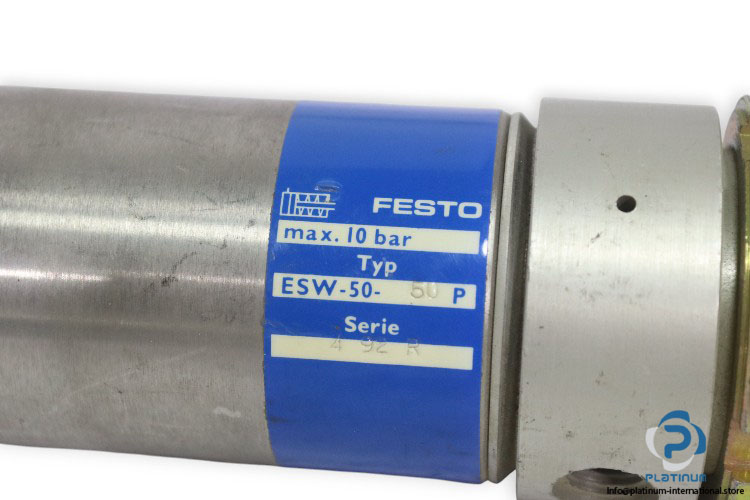

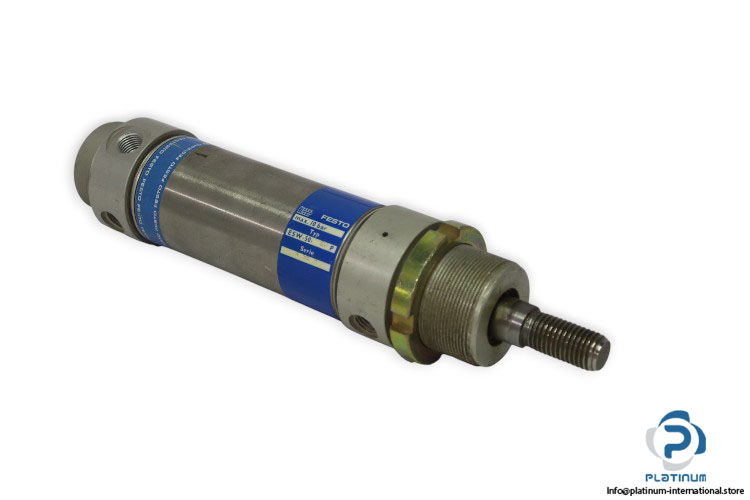

Festo ESW-50-50 P Round Cylinder
The Festo ESW-50-50 P is a single-acting pneumatic round cylinder engineered for reliable performance in industrial automation. With a 50 mm stroke length, 50 mm piston diameter, and robust circular body design, it delivers consistent force output and durability under demanding conditions.
Manufacturer: Festo
Type: Round Cylinder
Model: ESW-50-50 P
Series: ESW / 4 92 R
Technical Information
- Stroke Length: 50 mm
- Piston Diameter: 50 mm
- Piston Rod Thread: 12 mm (Male)
- Pneumatic Connection: G1/4
- Operating Medium: Compressed Air
- Max. Operating Pressure: 10 bar
- Shape: Circular
- Piston Action: Single Acting
- Rod Direction: One Side
- Temperature Range: -20 to 80°C
