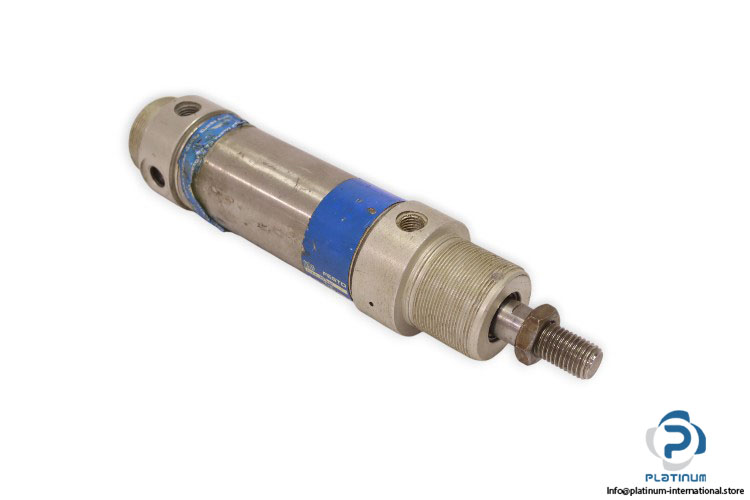

Festo ESW-50-50 P Round Cylinder
The Festo ESW-50-50 P is a high-performance pneumatic round cylinder designed for reliability and efficiency in automation applications. With a robust construction and precise cushioning, it ensures consistent operation under demanding industrial conditions.
- Manufacturer: Festo
- Type: Round Cylinder
- Model: ESW-50-50 P
- Series: ESW
- Serial No.: 8 89 R
Technical Information
- Fluid: Air
- Cylinder Action: Double-Acting
- Bore Diameter: 50 mm
- Stroke: 50 mm
- Working Pressure: Max. 10 bar
- Connection: G1/4
- Cushioning: Flexible Cushioning Rings or Plates at Both Ends (P)
- Rod Diameter: 18 mm
- Rod End: Male One Side
- Ambient Temperature: -20 °C to 80 °C
