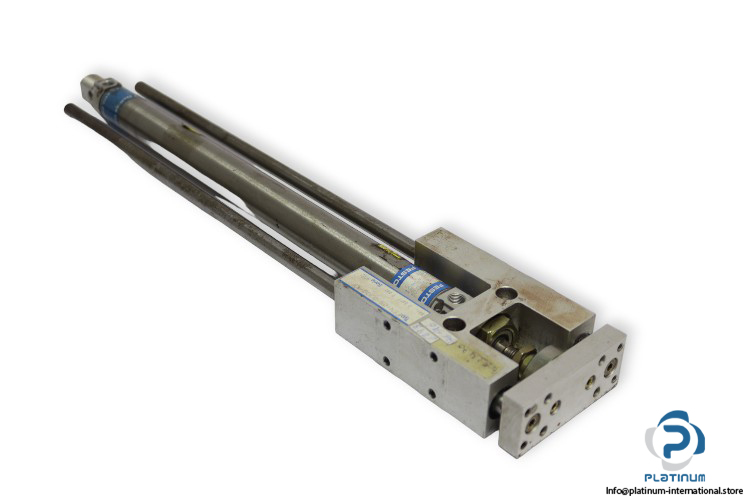

Manufacturer: FESTO
Type: Guide Unit

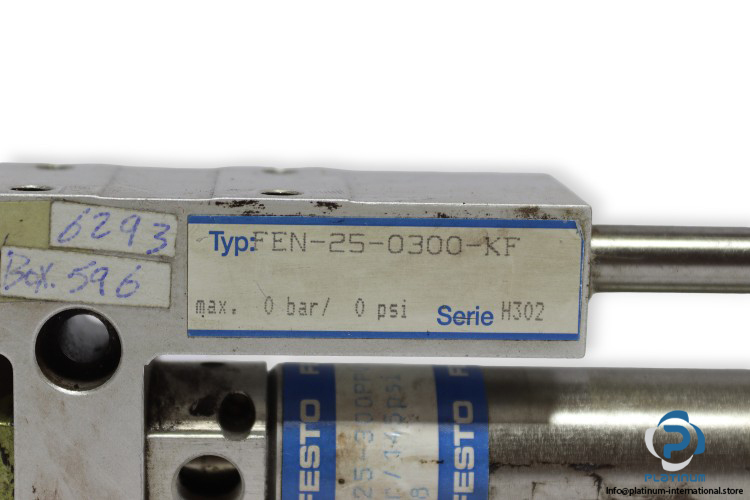

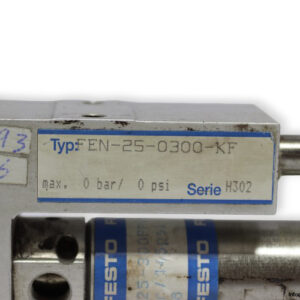

Model: FEN-25-0300-KF
Part No: 33483

Size: 25
Stroke: 30 mm
Displacement Force: 15 N
Max. force Fy,Fz static: 830 N
Guide: Recirculating ball bearing guide
Design: Guide
Ambient Temperature: -20…80 °C
Connection: G 1/8
Housing Material: Wrought aluminum alloy, anodized

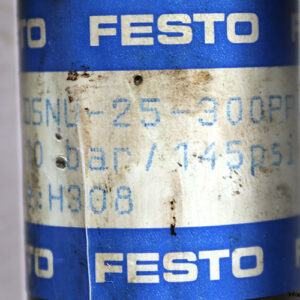

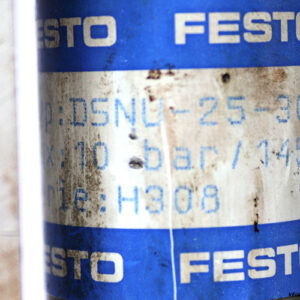

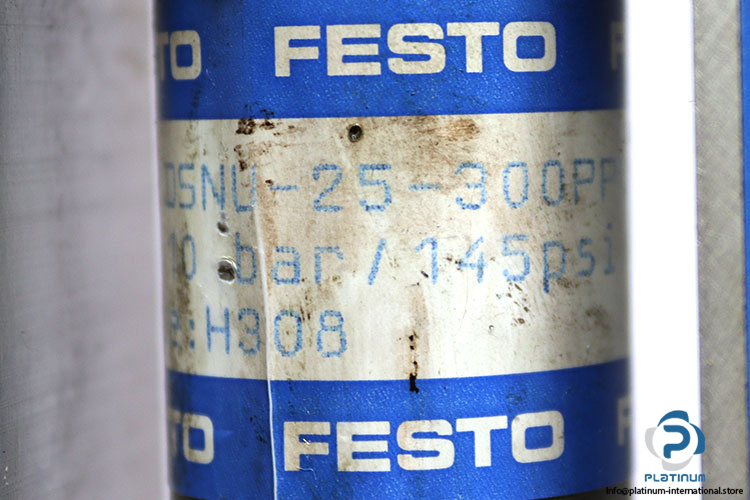

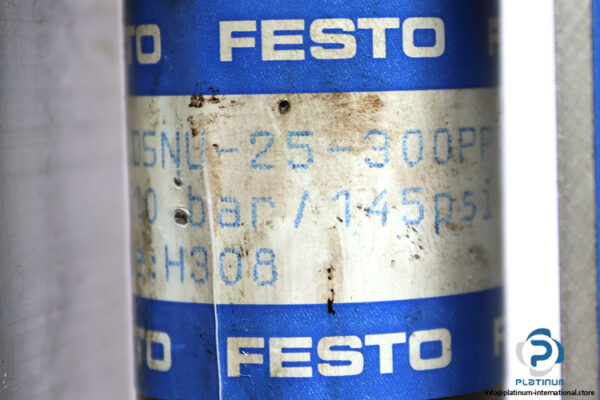

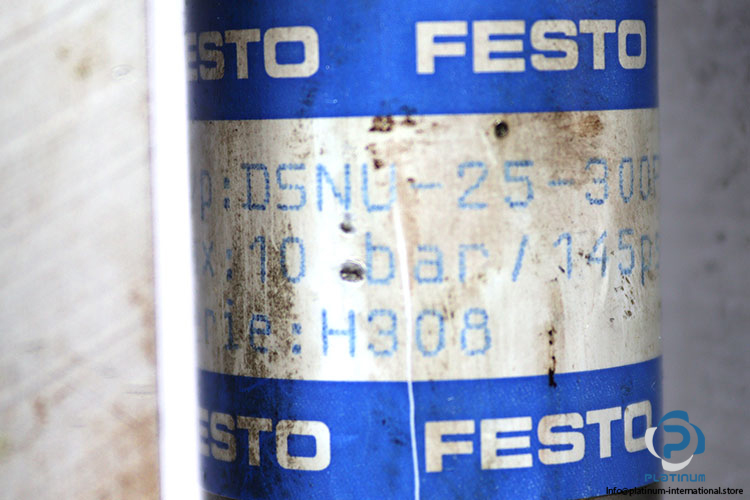

Attachment: FESTO DSNU-25-300PP ISO CYLINDER
Manufacturer: FESTO
Type: ISO Cylinder
Model: DSNU-25-300PP
Part No.: 193991

Piston Diameter: 25 mm
Stroke: 300 mm
Max. Pressure: 10 bar,145 Psi
