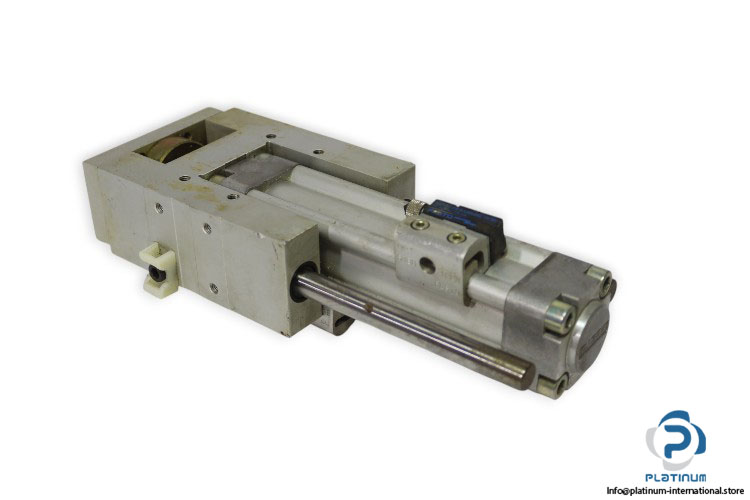

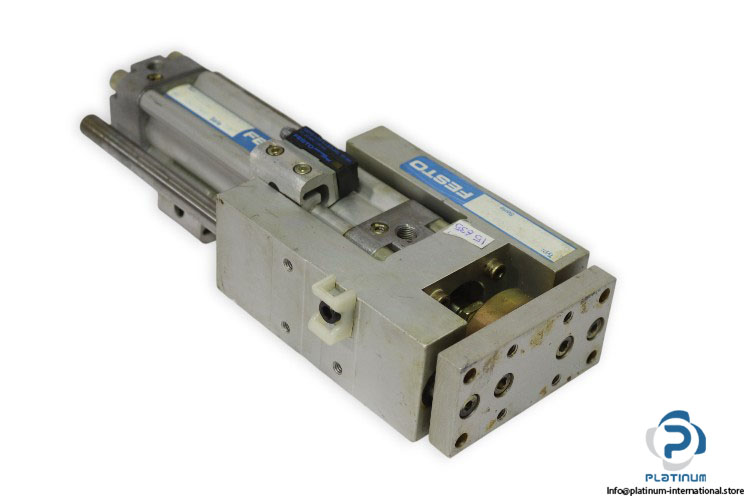

Festo Guide Unit FEN320100KF

The Festo FEN320100KF is a precision guide unit from the K102 series, designed for accurate linear guidance in industrial automation. Featuring a recirculating ball bearing guide, it offers exceptional stability, smooth movement, and flexible mounting in any position. Constructed with high-quality materials and fully RoHS-compliant, it ensures long-term durability in demanding environments.

Manufacturer: Festo
Type: Guide Unit

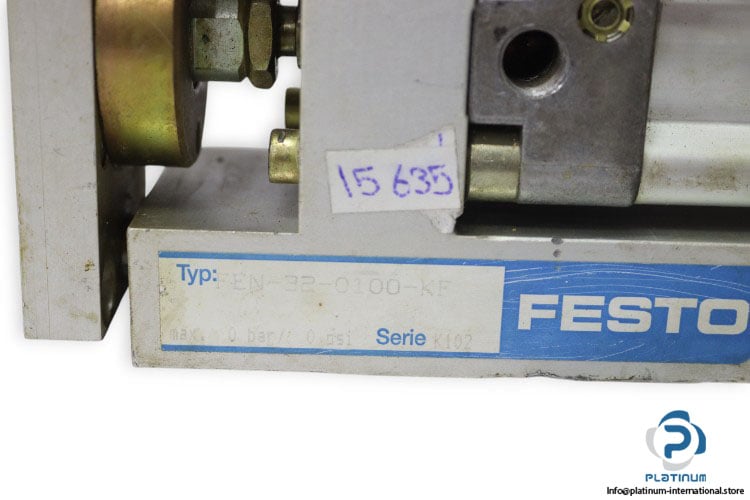

Model: FEN320100KF
Series: K102

Technical Information

• Diameter: 32 mm
• Stroke: 100 mm
• Mounting Position: Any
• Guide Type: Recirculating ball bearing
• Ambient Temperature: -20 °C to 80 °C
• Port Size: G1/8
• Materials: Copper- and PTFE-free, RoHS-compliant; housing of anodized aluminum alloy; guide components made of quenched and tempered steel

Attachment: Festo 14125 ISO Cylinder

• Manufacturer: Festo
• Type: ISO Cylinder
• Model: DNU-32-100-PPV-A
• Part No.: 14125
• Ref. Code: J108
• Piston Diameter: 32 mm
• Stroke: 100 mm
• Max. Pressure: 12 bar
• Connection: G1/8

Attachment: Festo 151685 Proximity Sensor

• Manufacturer: Festo
• Type: Proximity Sensor
• Model: SMTO-1-PS-S-LED-24C
• Part No.: 151 685
• Design: Block design
• Switching Output: PNP
• Switching Element Function: N/O contact
• Max. Switching Capacity: 6 W (DC)
• Operating Voltage Range: 10 to 30 V DC
• Electrical Connection: M8x1 A
• Max. Output Current: 200 mA
