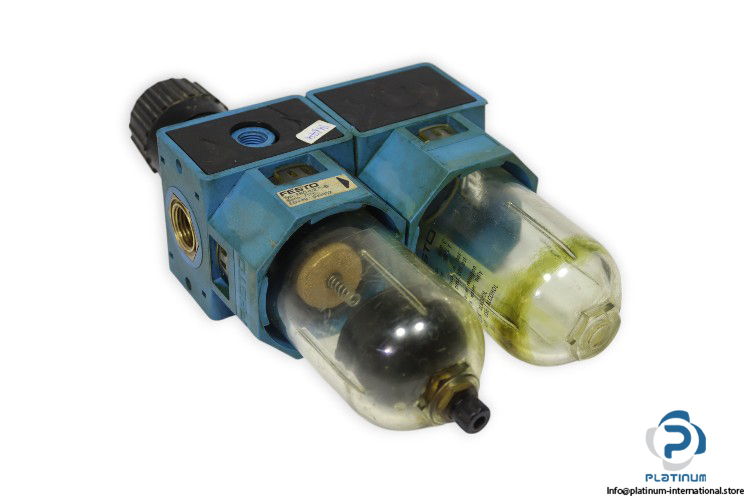

FESTO FRC-1/2-SB PNEUMATIC FILTER REGULATOR / SERVICE UNIT
This high-performance service unit from Festo combines filtering, regulating, and lubricating functions in a compact, industrial-grade design suitable for compressed air systems.
Manufacturer: Festo
Type: Pneumatic Filter Regulator / Service Unit

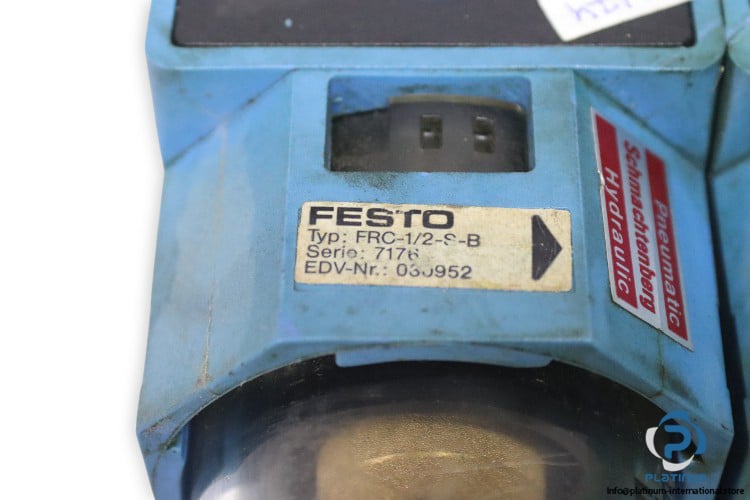

Model: FRC-1/2-SB
Serial No.: 7176
EDV-No.: 030952
Technical Information
- Operating Medium: Compressed Air
- Input Pressure Range: 0.5 to 14 bars
- Max Output Pressure: 12 bar
- Minimum Flow for Lubricator Operation: 55 l/min
- Standard Nominal Flow Rate: 2760 l/min
- Filter Element: 40µm rating
- Lubricator Capacity: 200cm³, direct proportional
- Condensate Capacity: 86cm³
- Temperature Range: -10 to +60°C
- Construction: PA polymer housing and bowl
- Regulator Lock: Pull up and turn, 0.1 bar hysteresis
- Connection: G1/2
