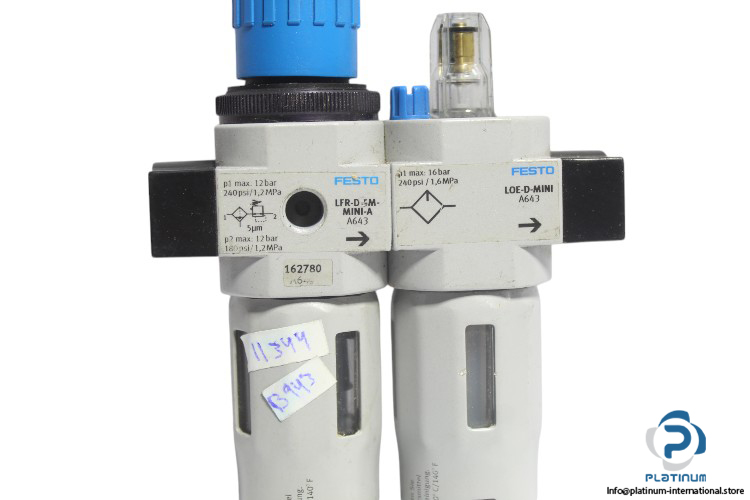

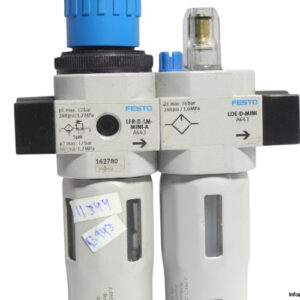

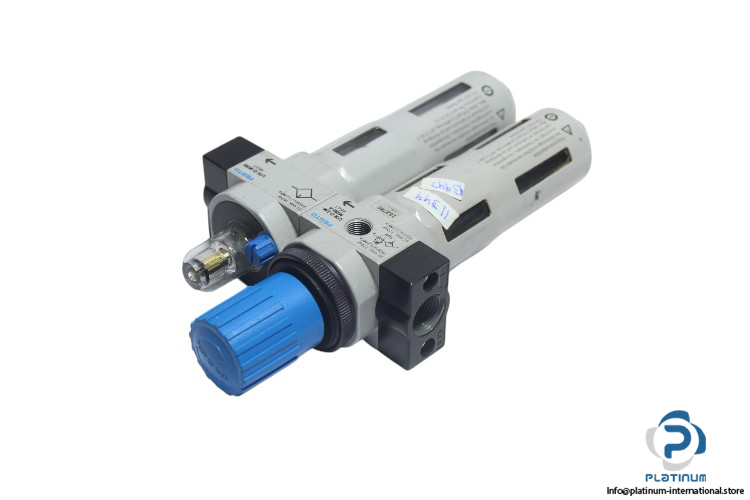

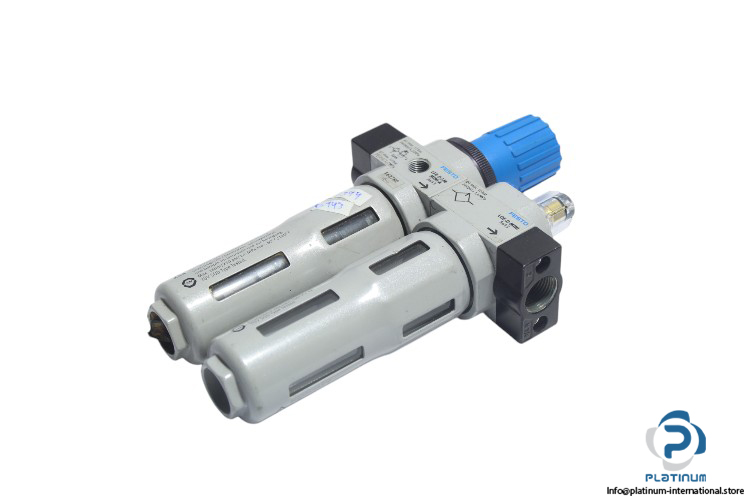

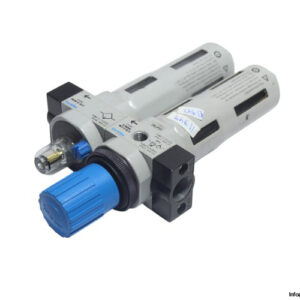

FESTO LFR-D-5M-MINI-A Basic Valve with LOE-D-MINI Air Line Lubricator
The FESTO LFR-D-5M-MINI-A Basic Valve is a high-performance filter regulator designed for compressed air and inert gas applications. Engineered to maintain optimal air quality and regulate pressure, it ensures efficient and reliable operation in pneumatic systems. This unit is paired with the FESTO LOE-D-MINI Air Line Lubricator, which enhances system performance by delivering precise lubrication.
- Manufacturer: FESTO
- Type: Basic Valve
- Model: LFR-D-5M-MINI-A
- Part No.: 162780 / 546455
Technical Information
- Size: MINI
- Fluid: Compressed Air / Inert Gas
- Structural Design: Filter Regulator without Pressure Gauge
- Operating Pressure Max.: 12 bar / 180 PSI / 1.2 MPa
- Nominal Flow Rate: 2891.95 l/min
- Filtration Level Grade: 5-micron m
- Pneumatic Connection: G 3/8 & G 1/8
- Material: Die-Cast Zinc
- Ambient Temperature: 5 … 60 °C
Attachment: FESTO LOE-D-MINI Air Line Lubricator
- Manufacturer: FESTO
- Type: Air Line Lubricator
- Model: LOE-D-MINI
- Part No.: 192575
- Size: MINI
- Fluid: Compressed Air / Inert Gas
- Operating Pressure Max.: 16 bar
- P1 Max.: 16 bar / 240 PSI / 1.6 MPa
- Nominal Flow Rate: 3 l/min
- Oil Capacity Max.: 45 cm³
- Material: Die-Cast Zinc
- Ambient Temperature: -10 … 60 °C
