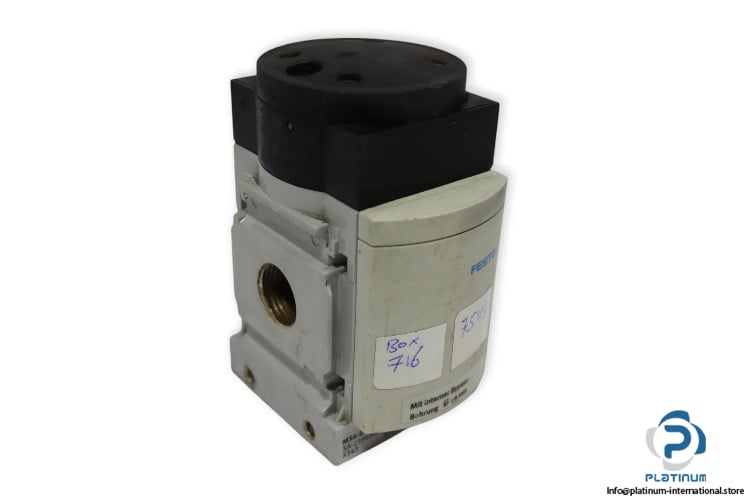

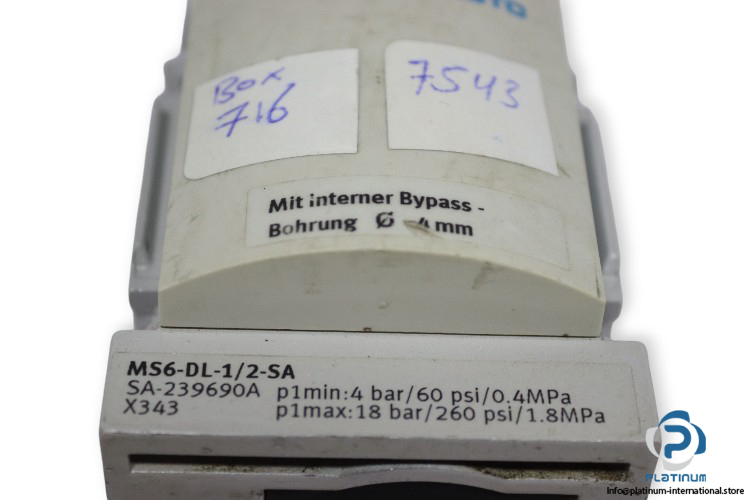

FESTO MS6-DL-1/2-SA SOFT START VALVE
The FESTO MS6DL12SA is a high-performance soft start valve engineered for smooth pressurization in pneumatic systems. With a durable die-cast aluminium body and piston seat design, it supports a wide range of pressures and flow rates, making it ideal for industrial automation applications.
Manufacturer: FESTO
Type: Soft Start Valve
Model: MS6-DL-1/2-SA
Part No.: 530032
Technical Information
- Fluid: Air
- Design: Piston seat
- Function: 2/2 way
- Type of Actuation: Pneumatically
- Operating Pressure: 4 … 18 bar
- Nominal Flow Rate: 2600 … 6450 l/min
- Pneumatic Connection: G1/2
- Material: Die-cast aluminium
- Ambient Temperature: -10 / 60 °C
