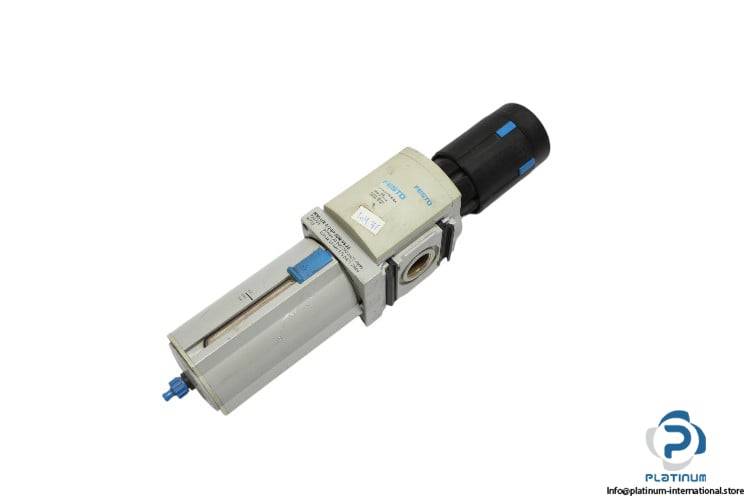

Festo MS6-LFR-1/2-D7-EUM-VS-AS Filter Regulator
The Festo MS6-LFR-1/2-D7-EUM-VS-AS Filter Regulator is designed for precise pressure regulation and filtration in pneumatic systems. With a robust die-cast aluminum housing and a high standard nominal flow rate, it ensures efficient performance in demanding industrial environments.
Manufacturer: Festo
Type: FILTER REGULATOR
Model: MS6-LFR-1/2-D7-EUM-VS-AS
Technical Information:
- Size: 6
- Actuator Lock: Rotary knob with detent
- Mounting Position: Vertical +/-5°
- Grade of Filtration: 40 µm
- Condensate Drain: Manually rotating
- Max. Condensate Volume: 38 ml
- Operating Pressure: 0.8 bar to 20 bar
- Pressure Regulation Range: 0.5 bar to 12 bar
- Standard Nominal Flow Rate: 4500 l/min

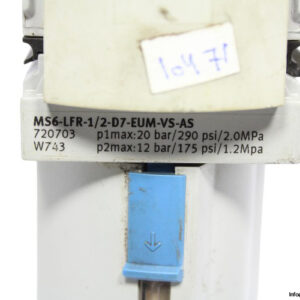

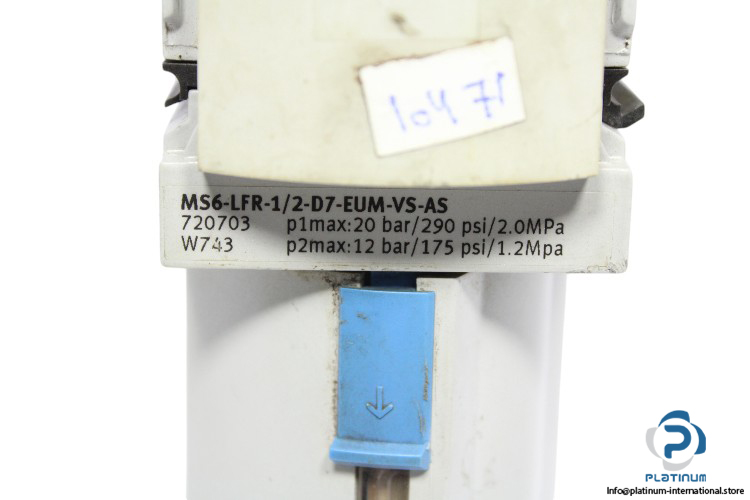

- Max. Pressure 1: 20 bar / 290 psi / 2 MPa
- Max. Pressure 2: 12 bar / 175 psi / 1.2 MPa
- Material Housing: Die-cast aluminum
- Ambient Temperature: -10 to 60 °C
Designed for durability and efficiency, this filter regulator ensures clean and consistent airflow for optimal pneumatic system performance.
