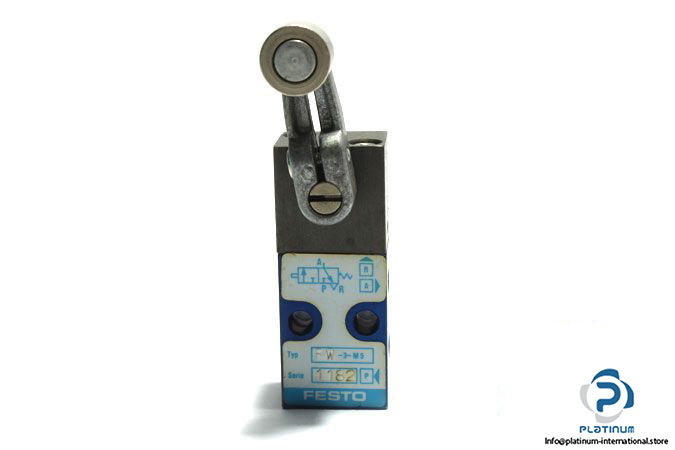

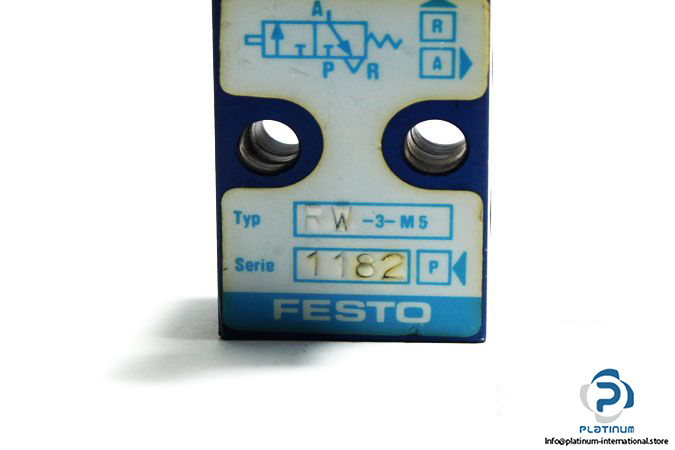

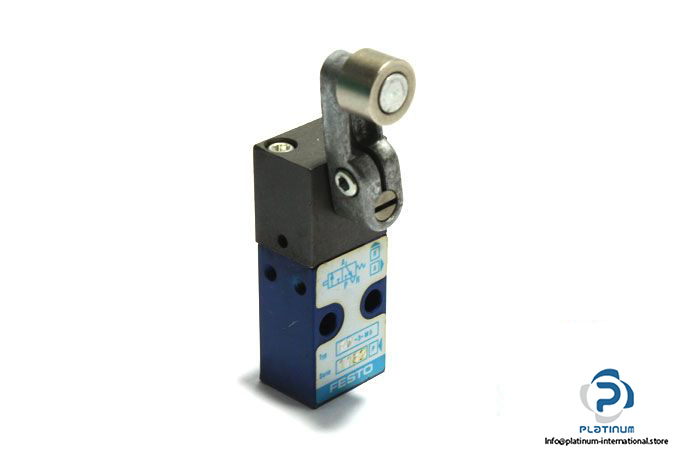

FESTO RW-3-M5 SWIVEL LEVER VALVE
The FESTO RW3M5 is a compact and durable swivel lever valve designed for precise mechanical actuation in pneumatic systems. With its monostable 3/2-way configuration and piston seat design, this valve offers consistent performance in industrial air control applications.
Manufacturer: FESTO
Type: Swivel Lever Valve
Model: RW-3-M5
Part No.: 4031
Technical Information
- Fluid: Air
- Design: Piston seat
- Function: 3/2-way, closed, monostable
- Type of Actuation: Mechanically
- Operating Pressure: -0.95 to 8 bar
- Nominal Flow Rate: 80 l/min
- Pneumatic Connection: M5
- Material: Die-cast zinc
- Ambient Temperature: -10 to 60 °C
