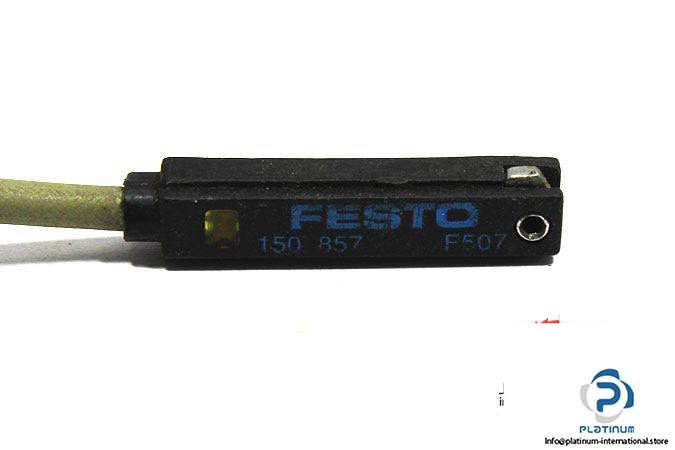

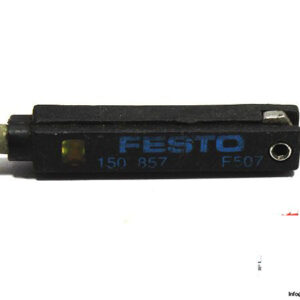

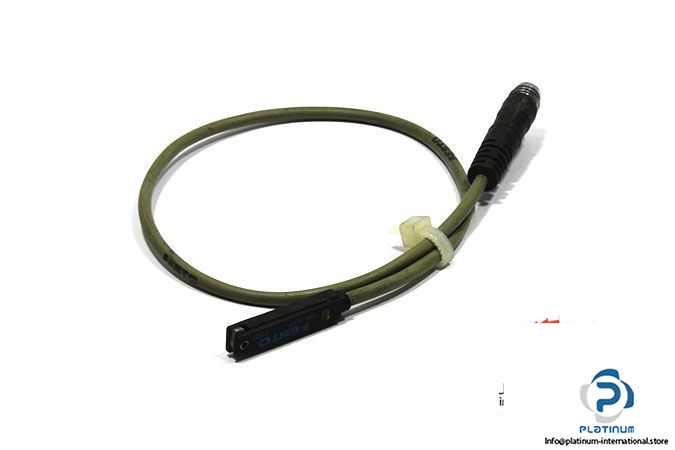

Manufacturer: FESTO

Type: PROXIMITY SENSOR

Model: SME-8-S-LED-24

Part No.: 150857

Measuring Principle: Magnetic Reed

Operating Voltage: 12 … 30 V AC / DC

Operating Current: 500 mA

Contact Rating Max.: 10 W

Switching Output: Normally Open

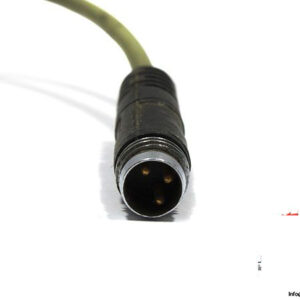

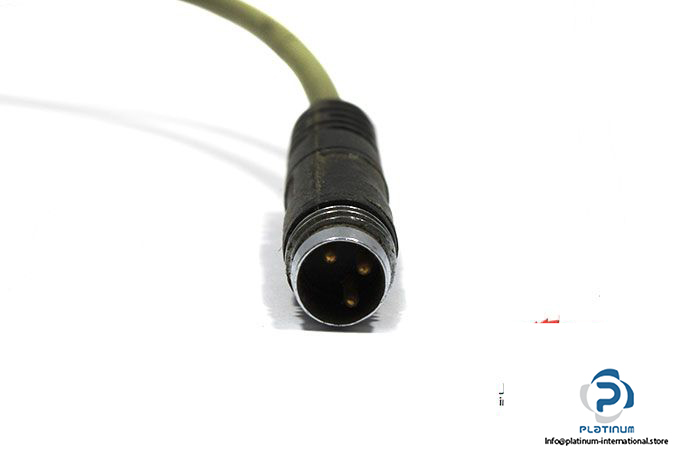

Connector Type: M8 Connector, 3-Pin

Enclosure Rating: IP67

Ambient Operating Temperature: -40 … 70°C

Diameter, Housing Length: 4 x 6 x 29 mm

Housing Material: Epoxy Resin, PC, PET

Weight: 8 g
