Manufacturer: FESTO
Type: Proximity Sensor

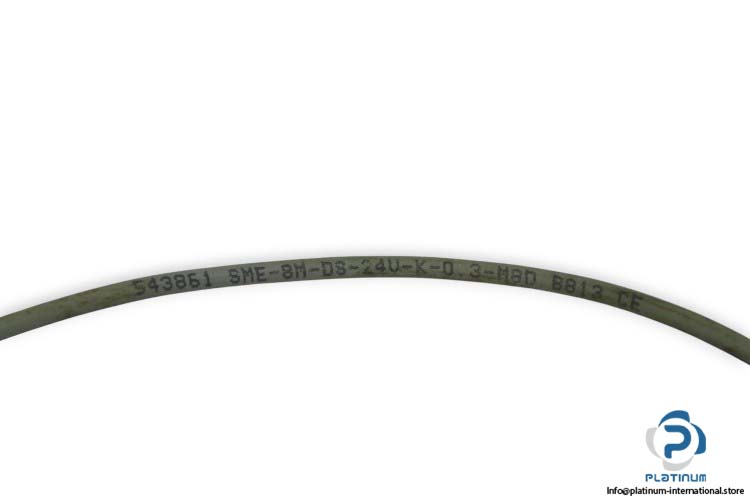

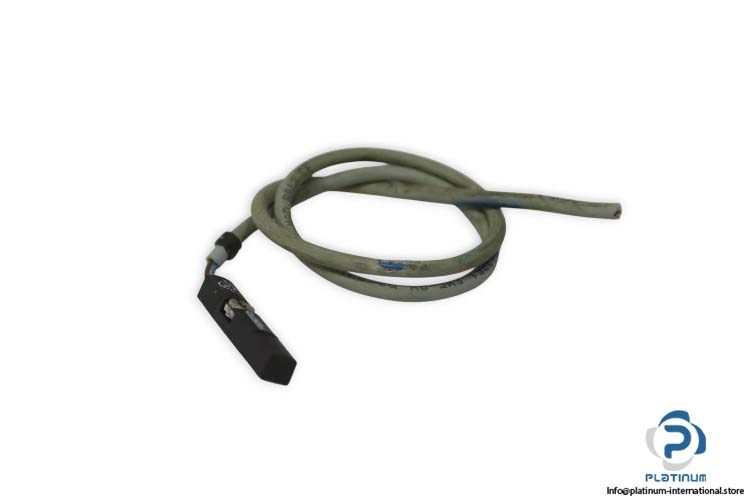

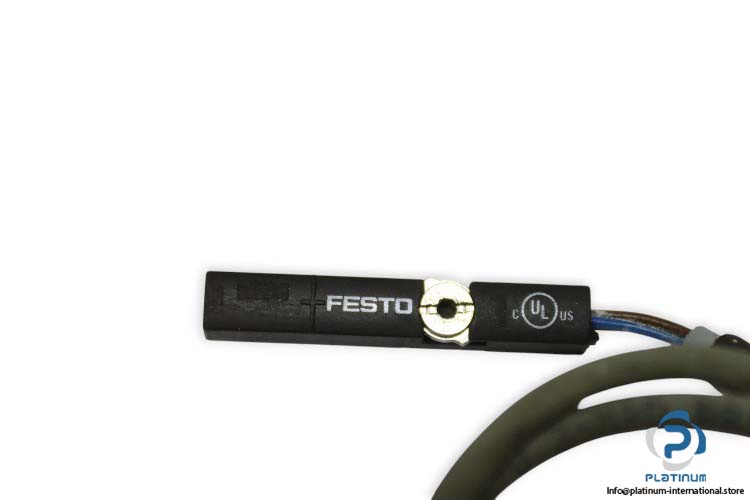

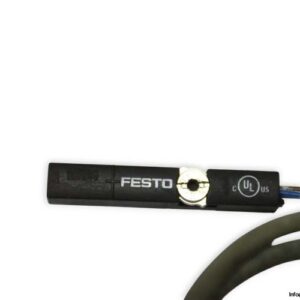

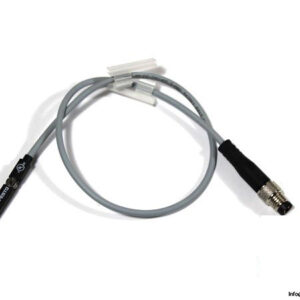

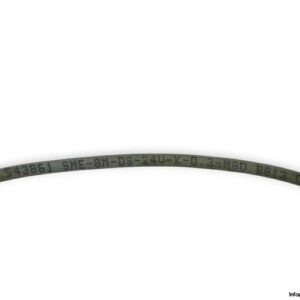

Model: SME-8M-DS-24V-K-0,3-M8D
Part No.: 543861
The FESTO SME-8M-DS-24V-K-0,3-M8D proximity sensor is designed for precise and reliable detection in industrial automation environments. Using a reed magnetic measuring principle, this sensor ensures optimal performance in various conditions. It features a compact cable with plug connection, high contact ratings, and robust protection against dust and water, making it suitable for harsh operational settings.
Technical Information
- Measuring Principle: Reed magnetic
- Operating Voltage Range: 5 … 30 V AC/ DC
- Cable Length: 0.3 m
- Switching Element Function: Normally open contact
- Max. Output Current: 500 mA
- Electrical Connection Type: Cable with plug
- Max. Contact Rating AC: 10 VA
- Max. Contact Rating DC: 10 W
- Protection Class: IP65 / IP68
- Ambient Temperature: -40 … 70 °C
